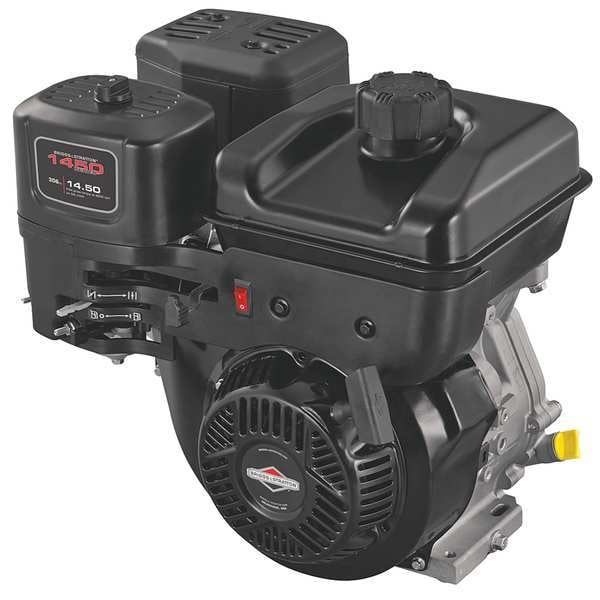

Gas Engine, 3750 rpm, 3.48 in. Shaft L
| Item | Gasoline Engine |
|---|---|
| Includes | Low Oil Sensor, Metal Tank |
| Start | Recoil |
| Function | General Purpose |
| Maintenance Frequency | Change Oil After 5 Hour Break In Period, and Then After 100 Hour or Annually, Whichever Comes First, Change/Clean Filter and Precleaner Every 25 Hour or Annually, Inspect Muffler and Spark Arrester Every 50 Hour, Replace Air Filter, Spark Plug and Oil Annually, Use Briggs Fuel Treatment to Avoid Carburetion Issues Caused By Stale Fuel |
| Features | Cast Iron Cylinder Sleeve for Extended Life |
| Overall Depth Facing PTO (In.) | 11 |
| Overall Height (In.) | 16-1/2 |
| Design | Overhead Valve |
| Overall Width (In.) | 17 |
| Bearings | Ball, PTO |
| Shaft Orientation | Horizontal |
| Gross Torque | 14.5 ft-lb |
| PTO Shaft Length (In.) | 3.48 |
| Recommended Use | Blowers, Compressors, Log Splitters, Other Utility Engine Applications, Pressure Washers, Tillers |
| PTO Shaft Height (In.) | 5-1/4 |
| Rotation | CCW |
| RPM | 3,750 |
| Application | Blowers, Compressors, Log Splitters, Other Utility Engine Applications, Pressure Washers, Tillers |
| Shaft Length (In.) | 3-31/64 |
| Shaft Height (In.) | 5-1/4 |
| Air Filter | Pleated Paper with Foam Pre Cleaner |
| Agency Compliance | ASE J1940, CARB, EPA, Meets all Consumer Protection Agency Labeling Guidelines |
| Shaft Configuration | Keyed 1/4", Tapped 7/16"-20 |
| PTO Shaft Dia. (In.) | 1 |
| Shaft Dia. (In.) | 1 |
| Air Cleaner Type | Dual Clean |
| Muffler | Yes |
| Type | 4 cycle |
| Fuel Tank Capacity (Qt.) | 3.2 |
| Series | XR Professional 1450 |
| Engine RPM | 3,750 rpm |
| 4 Cycle Engine | yes |
| Starter Type | Recoil |
| Low Oil Shut Down | Yes |
| Overall W Facing PTO (In.) | 17 |
| Gear Box | No |
| Overall H Facing PTO (In.) | 16-1/2 |
| PTO Shaft Key (In.) | 1/4 |
| Ignition Type | Magnetron Electronic |
| Cylinders | Cast Iron |
| Shaft Key (In.) | 1/4 |
| Overall Depth (In.) | 11 |
| Standards | ASE J1940, CARB, EPA, Meets all Consumer Protection Agency Labeling Guidelines |
| Overall Width | 17 in |
| Overall Height | 16-1/2 in |
| Overall H Facing PTO | 16-1/2 in |
| CARB Compliant | CARB Compliant |
| Engine Brand | Briggs and Stratton |
| Overall W Facing PTO | 17 in |
| Overall Depth | 11 in |
| Overall Depth Facing PTO | 11 in |
| Fuel Tank Capacity | 3.2 qt |
| Number of Cylinders | 1 |
| Engine Displacement | 305 cc |
| Maximum Speed | 3,750 rpm |
| Shaft Diameter | 1 in |
| PTO Shaft Height | 5-1/4 in |
| Start Type | Recoil |
| PTO Shaft Key | 1/4 in |
| PTO Shaft Length | 3-1/2 in |
| Engine Cycle | 4-Cycle |
| Shaft Height | 5-1/4 in |
| Horsepower | 10 |
| Engine Series | XR Professional Series |
| Shaft Key | 1/4 in |
| PTO Shaft Diameter | 1 in |
| Shaft Length | 3-1/2 in |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
