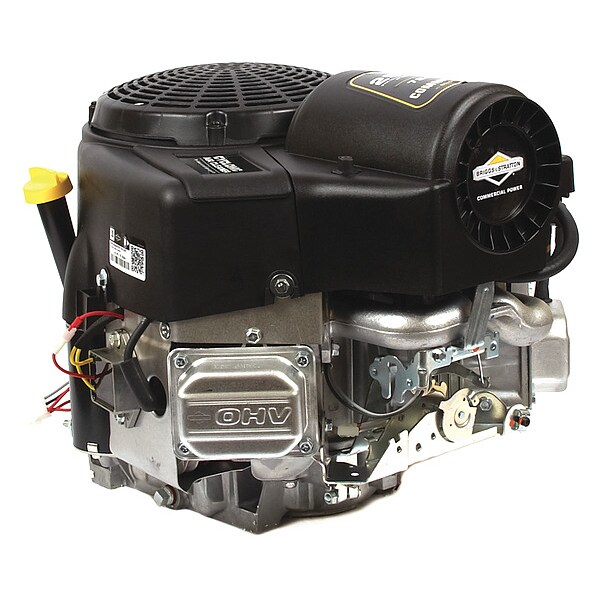

Gasoline Engine, 4-CYCLE, 1" dia. Shaft
| Type | 4 cycle |
|---|---|
| HP | 25 hp |
| Gross Torque | 5.5 ft-lb |
| Shaft Orientation | Vertical |
| Shaft Dia. (In.) | 1 |
| Shaft Length (In.) | 3.15 |
| Overall W Facing PTO (In.) | 16 |
| Design | V-Twin |
| Includes | Muffler |
| Overall Height (In.) | 18 |
| PTO Shaft Length (In.) | 3.15 |
| Air Cleaner Type | Dual Clean |
| Overall Width (In.) | 16 |
| PTO Shaft Key (In.) | 1/4 |
| Rotation | CCW |
| RPM | 3,300 |
| Engine RPM | 3,300 RPM |
| Start | Electric |
| Overall H Facing PTO (In.) | 18 |
| Ignition Type | Magnetron Electronic |
| Agency Compliance | CARB/OHV 50 States |
| Low Oil Shut Down | No |
| Air Filter | Pleated Paper |
| Recommended Use | Lawn Care |
| Overall Depth (In.) | 19 |
| Overall Depth Facing PTO (In.) | 19 |
| Maintenance Frequency | Change Oil After 5 Hour Break In Period, and Then After 100 Hour or Annually, Whichever Comes First, Change/Clean Filter and Precleaner Every 25 Hour or Annually, Inspect Muffler and Spark Arrester Every 50 Hour, Replace Air Filter, Spark Plug and Oil Annually |
| Function | General Purpose |
| Item | Gasoline Engine |
| PTO Shaft Dia. (In.) | 1 |
| Shaft Configuration | 1/4", Drilled 1" x 3 5/32", Keyway, Tapped 7/16"-20 |
| Application | Lawn Care |
| Cylinders | 2 |
| Features | Cast Iron Sleeve Adds Integrity and Durability |
| Muffler | Yes |
| Bearings | Plain |
| Series | Professional Series |
| 4 Cycle Engine | yes |
| Starter Type | Electric |
| Overall Depth | 19 in |
| PTO Shaft Key | 1/4 in |
| Maximum Speed | 3,300 rpm |
| Overall W Facing PTO | 16 in |
| Number of Cylinders | 2 |
| Shaft Length | 3-1/8 in |
| Shaft Diameter | 1 in |
| Engine Brand | Briggs and Stratton |
| Engine Series | Commercial Turf Series |
| CARB Compliant | CARB Compliant |
| Start Type | Electric |
| Overall Width | 16 in |
| Engine Displacement | 724 cc |
| Standards | CARB/OHV 50 States |
| Overall H Facing PTO | 18 in |
| Overall Height | 18 in |
| Engine Cycle | 4-Cycle |
| PTO Shaft Length | 3-1/8 in |
| PTO Shaft Diameter | 1 in |
| Overall Depth Facing PTO | 19 in |
| Horsepower | 25 |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
