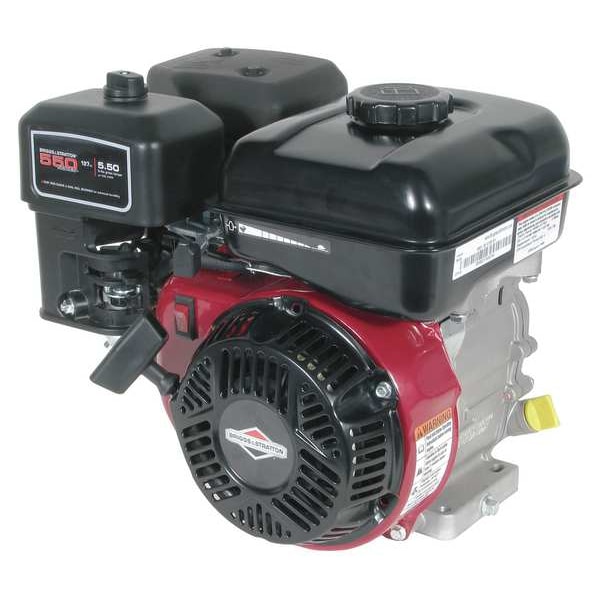

Gasoline Engine, 5.5 lb.-ft., Gross Torque
| Type | Non-CARB Compliant |
|---|---|
| HP | 4.2 hp |
| Gross Torque | 5.5 ft-lb |
| Shaft Orientation | Horizontal |
| Shaft Dia. (In.) | 5/8 |
| Shaft Length (In.) | 2-27/64 |
| Fuel Tank Capacity (Qt.) | 2 |
| Overall Height (In.) | 12.6 |
| Recommended Use | Compressors, Log Splitters, Packers, Pumps, Tillers |
| Starter Type | Recoil |
| Air Filter | Pleated Paper |
| Features | Cast Iron Cylinder Sleeve for Extended Life |
| PTO Shaft Key (In.) | N |
| Ignition Type | Magnetron Electronic |
| PTO Shaft Length (In.) | 2.421 |
| Application | Pumps,Tillers,Compressor,packers,Log Splitters |
| Cylinders | 1 |
| Overall Width (In.) | 13.53 |
| PTO Shaft Height (In.) | 4.17 |
| Design | Overhead Valve |
| Muffler | Yes |
| Maintenance Frequency | 50 hours |
| Air Cleaner Type | Paper Pleated |
| PTO Shaft Dia. (In.) | 5/8 |
| Engine RPM | 4,000 RPM |
| Shaft Height (In.) | 4.17 |
| Shaft Key (In.) | N |
| Series | XR Professional 550 |
| Overall Depth (In.) | 11 |
| Overall Depth Facing PTO (In.) | 6.9 |
| Item | Gasoline Engine |
| RPM | 4,000 |
| Shaft Configuration | 5/8" Threaded |
| Overall H Facing PTO (In.) | 12.6 |
| Function | Chore |
| 4 Cycle Engine | yes |
| Overall W Facing PTO (In.) | 7.32 |
| Bearings | Ball, PTO |
| Overall Height | 12-5/8 in |
| Overall Width | 13-1/2 in |
| Number of Cylinders | 1 |
| Overall W Facing PTO | 7-5/16 in |
| Start Type | Recoil |
| Engine Displacement | 127 cc |
| Overall H Facing PTO | 12-5/8 in |
| Maximum Speed | 4,000 rpm |
| CARB Compliant | CARB Non-Compliant |
| Shaft Length | 2-7/16 in |
| Shaft Diameter | 5/8 in |
| Engine Cycle | 4-Cycle |
| Engine Brand | Briggs and Stratton |
| PTO Shaft Length | 2-7/16 in |
| Shaft Height | 4-3/16 in |
| PTO Shaft Height | 4 3/16 in |
| Overall Depth | 11 in |
| Fuel Tank Capacity | 2 qt |
| Engine Series | Professional Series |
| Overall Depth Facing PTO | 6-7/8 in |
| PTO Shaft Diameter | 5/8 in |
| Horsepower | 4.2 |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
