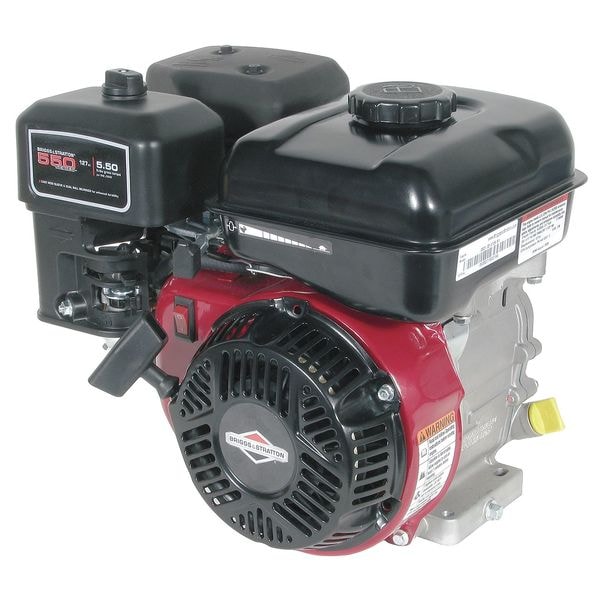

Gasoline Engine, 5.5 lb./ft., Gross Torque
| Item | Gasoline Engine |
|---|---|
| Shaft Height (In.) | 4.17 |
| PTO Shaft Key (In.) | Y |
| RPM | 3,600 |
| Shaft Orientation | Horizontal |
| Fuel Tank Capacity (Qt.) | 2 |
| Function | Chore |
| Features | Cast Iron Cylinder Sleeve for Extended Life |
| Shaft Configuration | 3/4" Dia, 6 to 1 Gear Reduction CCW Rotation, Keyway |
| Overall Depth (In.) | 11 |
| Muffler | Yes |
| Overall Height (In.) | 12.6 |
| Shaft Dia. (In.) | 3/4 |
| Gear Box | 6 to 1 |
| Cylinders | 1 |
| PTO Shaft Length (In.) | 2.421 |
| Overall W Facing PTO (In.) | 7.32 |
| Ignition Type | Magnetron Electronic |
| Shaft Key (In.) | Y |
| Engine RPM | 3,300 rpm |
| Maintenance Frequency | 50 hours |
| Overall Depth Facing PTO (In.) | 6.89 |
| PTO Shaft Dia. (In.) | 3/4 |
| Overall Width (In.) | 13.53 |
| Air Cleaner Type | Paper Pleated |
| Air Filter | Pleated Paper |
| Starter Type | Recoil |
| 4 Cycle Engine | yes |
| Series | XR Professional 550 |
| Rotation | CCW |
| Bearings | Ball, PTO |
| Recommended Use | Compressors, Log Splitters, Pumps, Tampers, Tillers |
| Application | Pumps,Tampers,Log Splitters,Tillers,Compressors |
| Design | Overhead Valve |
| Shaft Length (In.) | 1-13/16 |
| Gross Torque | 5.5 ft-lb |
| PTO Shaft Height (In.) | 4.17 |
| Overall H Facing PTO (In.) | 12.6 |
| Overall Height | 12-5/8 in |
| Overall Width | 13-1/2 in |
| Overall Depth Facing PTO | 6-7/8 in |
| Overall Depth | 11 in |
| Fuel Tank Capacity | 2 qt |
| Overall W Facing PTO | 7-5/16 in |
| Engine Series | XR Professional Series |
| Shaft Diameter | 3/4 in |
| Shaft Length | 1-13/16 in |
| Start Type | Recoil |
| Number of Cylinders | 1 |
| Horsepower | 3.5 |
| Maximum Speed | 3,300 rpm |
| CARB Compliant | CARB Compliant |
| PTO Shaft Length | 2-7/16 in |
| PTO Shaft Diameter | 3/4 in |
| Engine Displacement | 127 cc |
| Engine Brand | Briggs and Stratton |
| Engine Cycle | 4-Cycle |
| Shaft Height | 4-3/16 in |
| Overall H Facing PTO | 12-5/8 in |
| PTO Shaft Height | 4-3/16 in |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
