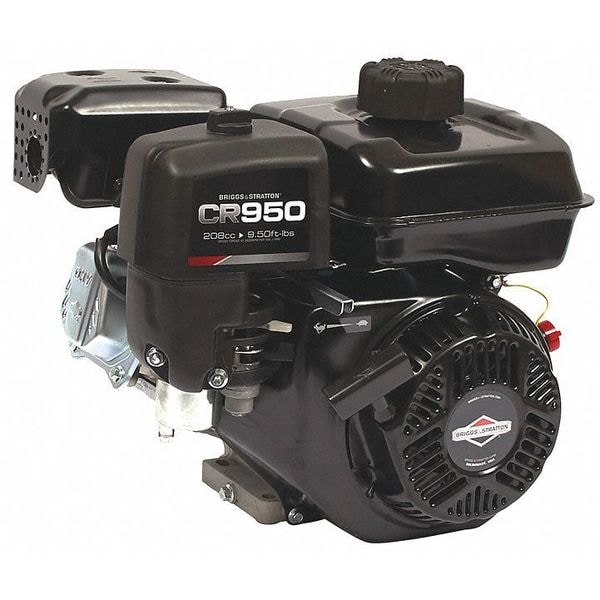

Gasoline Engine, 9.5 lb.-ft. Gross Torque
| Type | 4 cycle |
|---|---|
| Gross Torque | 9.5 ft-lb |
| Shaft Orientation | Horizontal |
| Shaft Dia. (In.) | 3/4 |
| Shaft Length (In.) | 2-27/64 |
| Fuel Tank Capacity (Qt.) | 3.2 |
| Maintenance Frequency | Change Air Filter at 25 Hour or Seasonally, Change Oil at 5 Hour, Then Once Every 50 Hour or Seasonally, Whichever Comes First |
| Overall W Facing PTO (In.) | 14.4688 |
| Engine RPM | 3,300 RPM |
| Bearings | Dual Ball |
| Start | Recoil |
| Design | Overhead Valve |
| Agency Compliance | SAE J1940 |
| PTO Shaft Key (In.) | 0.18 |
| Application | Lawn and Garden |
| Series | CR950 Series |
| Starter Type | Recoil |
| RPM | 3,300 |
| Cylinders | 1 |
| Ignition Type | Magnetron Electronic |
| Includes | Gas Tank, Muffler, Rewind Starter |
| Air Filter | Pleated Paper |
| Item | Gasoline Engine |
| Gear Box | No |
| 4 Cycle Engine | yes |
| Muffler | Yes |
| PTO Shaft Length (In.) | 2-7/16 |
| Overall Depth Facing PTO (In.) | 10.9531 |
| Shaft Configuration | Keyway |
| Low Oil Shut Down | Yes |
| Recommended Use | Lawn and Garden |
| Rotation | CCW |
| Function | General Purpose |
| Overall H Facing PTO (In.) | 15-9/16 |
| Features | Dura-Bore Cast Iron Cylinder Sleeve |
| PTO Shaft Height (In.) | 4.17 |
| Air Cleaner Type | Dual Clean |
| PTO Shaft Dia. (In.) | 3/4 |
| CARB Compliant | CARB Compliant |
| Overall H Facing PTO | 15-9/16 in |
| Overall W Facing PTO | 14-1/2 in |
| Horsepower | Not Applicable |
| PTO Shaft Length | 2-7/16 in |
| PTO Shaft Diameter | 3/4 in |
| Engine Displacement | 208 cc |
| PTO Shaft Key | 3/16 in |
| Overall Depth Facing PTO | 10-15/16 in |
| Number of Cylinders | 1 |
| Engine Series | CR950 Series |
| Fuel Tank Capacity | 3.2 qt |
| PTO Shaft Height | 4 3/16 in |
| Engine Brand | Briggs and Stratton |
| Shaft Length | 2-7/16 in |
| Engine Cycle | 4-Cycle |
| Shaft Diameter | 3/4 in |
| Start Type | Recoil |
| Maximum Speed | 3,300 rpm |
| Standards | SAE J1940 |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
