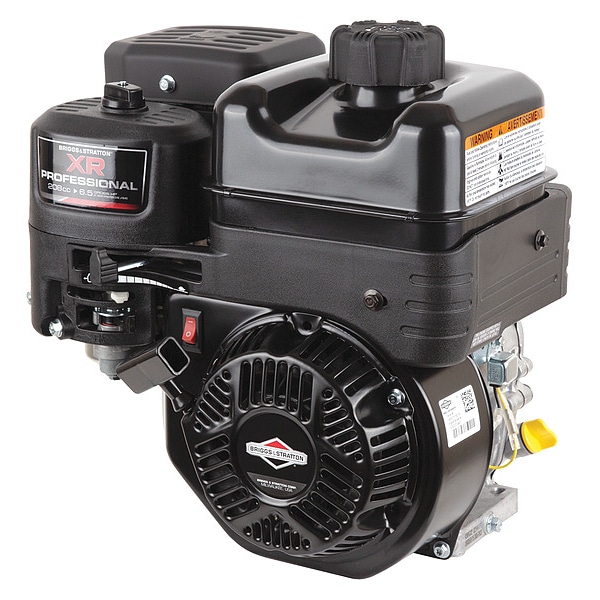

Gasoline Engine, 9.5 lb.-ft. Gross Torque, Series: 900
| Type | 4 cycle |
|---|---|
| Gross Torque | 9.5 ft-lb |
| Shaft Orientation | Horizontal |
| Shaft Dia. (In.) | 5/8 |
| Shaft Length (In.) | 2-27/64 |
| Fuel Tank Capacity (Qt.) | 3 |
| Start | Recoil |
| Series | 900 |
| Overall Width (In.) | 15.5469 |
| Item | Gasoline Engine |
| PTO Shaft Dia. (In.) | 0.62 |
| 4 Cycle Engine | yes |
| Includes | Automotive Type Pleated Paper Air Filter, Ball Bearing PTO, Dual Element Air Cleaner |
| RPM | 3,800 |
| PTO Shaft Length (In.) | 2.42 |
| Muffler | Yes |
| Low Oil Shut Down | No |
| Shaft Configuration | Threaded 5/8"-18 |
| Ignition Type | Magnetron Electronic |
| Bearings | Ball, PTO |
| Overall H Facing PTO (In.) | 15-3/16 |
| Rotation | CCW |
| Overall Height (In.) | 15-3/16 |
| Shaft Height (In.) | 4.1563 |
| Air Filter | Pleated Paper |
| Net Torque | 9.5 @ 2,600 rpm |
| Overall Depth Facing PTO (In.) | 10.1406 |
| Overall Depth (In.) | 10.1406 |
| Cylinders | Cast Iron |
| Maintenance Frequency | Annually |
| Starter Type | Recoil |
| Overall W Facing PTO (In.) | 15.5469 |
| Design | Overhead Valve |
| Application | Pump |
| PTO Shaft Height (In.) | 4.17 |
| Function | General Purpose |
| Air Cleaner Type | Dual Clean |
| Features | Dura-Bore Cast Iron Cylinder Sleeve |
| Gear Box | Internal |
| Recommended Use | Pumps |
| Engine RPM | 3,800 RPM |
| Shaft Diameter | 5/8 in |
| Maximum Speed | 3,800 rpm |
| Engine Cycle | 4-Cycle |
| CARB Compliant | CARB Compliant |
| Horsepower | 6.5 |
| Shaft Length | 2-7/16 in |
| Engine Series | Professional Series |
| Engine Displacement | 208 cc |
| Overall Depth Facing PTO | 10-1/8 in |
| Shaft Height | 4-3/16 in |
| Overall Depth | 10-1/8 in |
| PTO Shaft Diameter | 5/8 in |
| Overall W Facing PTO | 15-9/16 in |
| Engine Brand | Briggs and Stratton |
| Overall H Facing PTO | 15-3/16 in |
| Fuel Tank Capacity | 3 qt |
| Start Type | Recoil |
| Number of Cylinders | 1 |
| PTO Shaft Length | 2-7/16 in |
| Overall Height | 15-3/16 in |
| PTO Shaft Height | 4 3/16 in |
| Overall Width | 15-9/16 in |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
