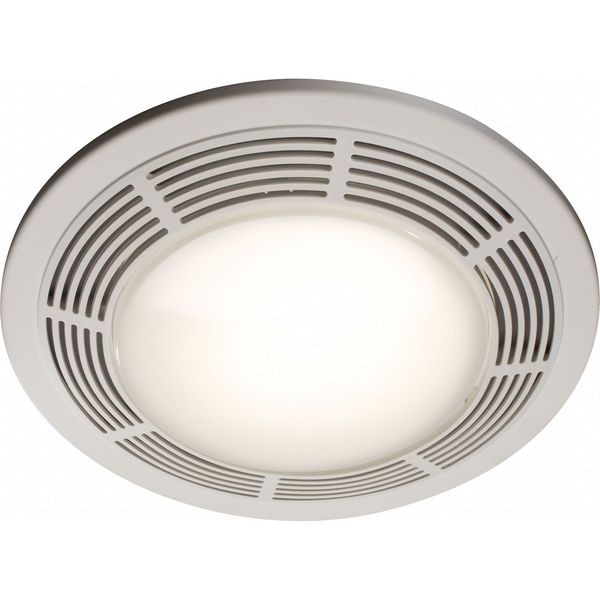

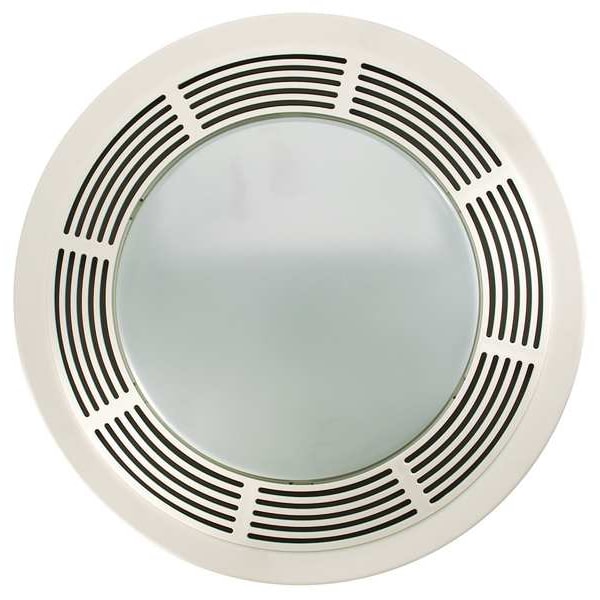

Ceiling Bathroom Fan, 100 cfm cfm, 4 in Duct Dia., 120V AC, With Light
| Voltage | 120V AC |
|---|---|
| Mounting Location | Ceiling |
| CFM @ 0.100-In. SP | 100 cfm |
| Includes | Duct Connector With Damper, Mounting Ears To Attach To Ceiling Joist |
| Phase | 1 |
| Duct Dia. | 4 in |
| Amps | 1.9 |
| Housing Material | Steel |
| Number of Speeds | 1 |
| Sones @ 0.100-In. SP @ 5 Ft. | 3.5 |
| Lighted | With Light |
| Heater | Without Heater |
| Motion Sensing | No |
| Profile | Medium |
| Discharge | Horizontal |
| Humidity Sensing | No |
| Housing Height | 6 in |
| Construction Material | Metal |
| Housing Length | 9 in |
| Hz | 60 |
| Height (In.) | 6 |
| Night-Light | No |
| Requires | 2CUX8 100W Incandescent Lamp and 7C7-130V Night Light |
| Grille Width | 15 in |
| Item | Bathroom Fan |
| Standards | HVI Certified, UL Listed |
| Grille Material | Polymeric |
| Grille Length | 15 in |
| Width (In.) | 9 |
| Housing Width | 9 in |
| Grille Color | White |
| Motor Type | Permanently Lubricated |
| Overall Height | 6 in |
| Overall Width | 9 in |
| Maximum Noise Level | 5 sones |
| Profile Width Family | Single-Wide |
| Maximum Coverage Area | 90 sq ft |
| Night Light Wattage | 7 W |
| Noise Level @ 0.100 in SP @ 5 ft | 5 sones |
| Duct Shape | Round |
| Includes Grill | Yes |
| Frequency | 60 Hz |
| Mounting Orientation | Horizontal |
| Sensor Type | Humidity |
| Discharge Direction | Horizontal |
| Profile Height Family | Medium |
| Full Load Current | 1.9 A |
| Exhaust Airflow @ 0.100 in SP | 100 cfm |
| Includes Light Bulbs | No |
| Vent Design | Ducted |
| Duct Diameter | 4 in |
| Primary Light Type | A19 |
| Overall Depth | 9 in |
| Housing Finish | Galvanized |
| Nameplate Voltage | 120 V AC |
| Roomside Installation | No |
| Number of Primary Lights | 1 |
| Blower Wheel Material | Polypropylene |
| Primary Light Wattage | 100 W |
| Primary Lighting Technology | Incandescent |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
