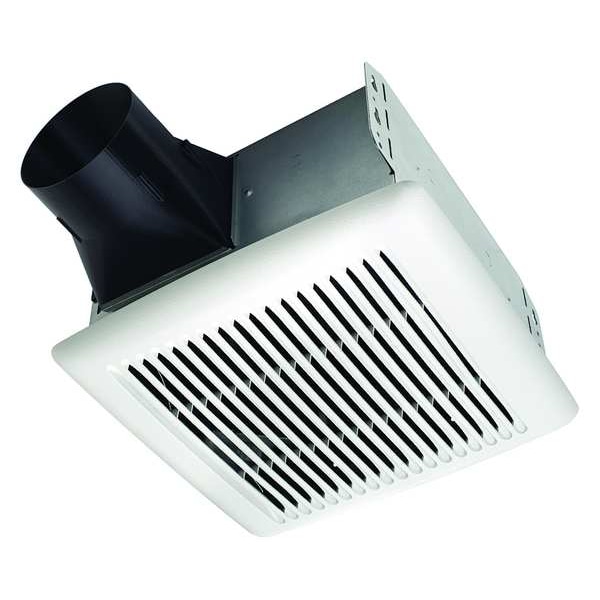

Ceiling Bathroom Fan, 50 cfm cfm, 4 in Duct Dia., 120V AC, Energy Star Certified
| Voltage | 120V AC |
|---|---|
| Mounting Location | Ceiling |
| CFM @ 0.100-In. SP | 50 cfm |
| Includes | Automatic Backdraft Damper |
| Phase | 1 |
| Watts | 4.9 |
| Duct Dia. | 4 in |
| Amps | 0.2 |
| Housing Material | Steel |
| Number of Speeds | 1 |
| Sones @ 0.100-In. SP @ 5 Ft. | 0.5 |
| Lighted | Without Light |
| Heater | Without Heater |
| Motion Sensing | No |
| Profile | Medium |
| Width (In.) | 10 |
| Hz | 60 |
| Grille Width | 12 in |
| Standards | cUL Listed, ENERGY STAR Certified, HVI Certified, UL Listed |
| Height (In.) | 5-3/4 |
| Construction Material | Metal |
| Discharge | Horizontal |
| Housing Length | 10 in |
| Requires | Ductwork |
| Grille Length | 11-1/2 in |
| Humidity Sensing | No |
| Housing Width | 9-1/4 in |
| Housing Height | 5-3/4 in |
| Night-Light | No |
| Grille Material | Polymeric |
| Item | Bathroom Fan |
| Green Certification or Other Recognition | Energy Star® Certified |
| Grille Color | White |
| Full Load Amps | 0.2 |
| Overall Width | 10 in |
| Overall Height | 5-3/4 in |
| Duct Diameter | 4 in |
| Noise Level @ 0.100 in SP @ 5 ft | 0.5 sones |
| Maximum Noise Level | 0.5 sones |
| Roomside Installation | Yes |
| Sensor Type | None |
| Includes Grill | Yes |
| Duct Shape | Round |
| Overall Depth | 9-1/4 in |
| Exhaust Airflow @ 0.250 in SP | 37 cfm |
| Maximum Coverage Area | 45 sq ft |
| Exhaust Airflow @ 0.100 in SP | 50 cfm |
| Full Load Current | 0.2 A |
| Grille Finish | Enamel |
| Profile Width Family | Single-Wide |
| Nameplate Voltage | 120 V AC |
| Profile Height Family | Medium |
| Wattage | 20 W |
| Discharge Direction | Horizontal |
| Vent Design | Ducted |
| Frequency | 60 Hz |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
