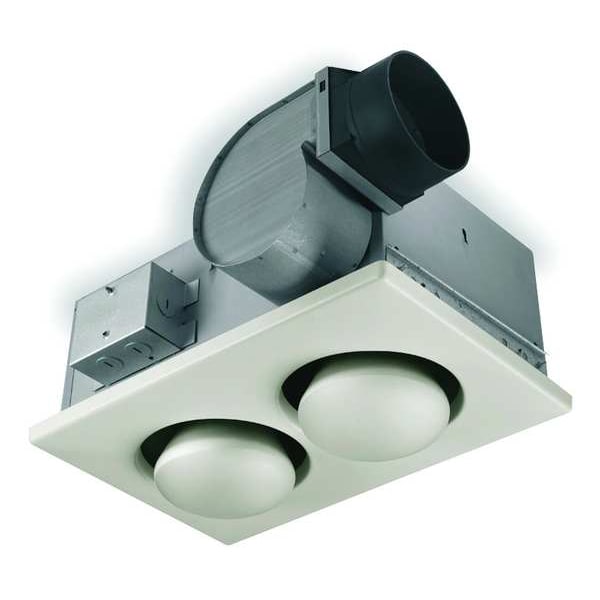

Ceiling Bathroom Fan, 70 cfm cfm, 4 in Duct Dia., 120V AC, Without Light
| Voltage | 120V AC |
|---|---|
| Mounting Location | Ceiling |
| CFM @ 0.100-In. SP | 70 cfm |
| Includes | Adjustable Mounting Brackets, Quiet Plastic Damper, Squirrel Cage Plastic Blower Wheel |
| Phase | 1 |
| Watts | 45 |
| Duct Dia. | 4 in |
| Amps | 4.5 |
| Housing Material | Steel |
| Number of Speeds | 1 |
| Sones @ 0.100-In. SP @ 5 Ft. | 4 |
| Lighted | Without Light |
| Heater | With Heater |
| Motion Sensing | No |
| Profile | Medium |
| Height (In.) | 6-3/8 |
| Heat Watts | 500 |
| Night-Light | No |
| Requires | Infrared Lamp |
| Hz | 60 |
| Nominal RPM | 2400 RPM |
| Construction Material | Metal |
| Humidity Sensing | No |
| Standards | HVI Certified, UL Listed |
| Housing Height | 6-3/8 in |
| Grille Length | 15-1/2 in |
| Discharge | Horizontal |
| Grille Material | Polymeric |
| Housing Width | 8-3/8 in |
| Item | Bathroom Fan |
| Width (In.) | 14-1/4 |
| Housing Length | 14-1/4 in |
| Grille Width | 10-1/2 in |
| Grille Color | White |
| Overall Height | 6-3/8 in |
| Width | 45 |
| Overall Width | 8-3/8 in |
| Heater Wattage | 500 W |
| Maximum Coverage Area | 65 sq ft |
| Primary Light Type | BR40 |
| Blower Wheel Material | Polymeric |
| Roomside Installation | No |
| Overall Depth | 14-1/4 in |
| Sensor Type | None |
| Includes Light Bulbs | No |
| Noise Level @ 0.100 in SP @ 5 ft | 4 sones |
| Duct Diameter | 4 in |
| Wattage | 545 W |
| Includes Grill | Yes |
| Heater Type | Infrared Lamp |
| Profile Width Family | Single-Wide |
| Discharge Direction | Horizontal |
| Maximum Noise Level | 4 sones |
| Profile Height Family | Medium |
| Frequency | 60 Hz |
| Mounting Orientation | Horizontal |
| Number of Primary Lights | 2 |
| Full Load Current | 4.5 A |
| Duct Shape | Round |
| Vent Design | Ducted |
| Exhaust Airflow @ 0.100 in SP | 70 cfm |
| Nameplate Voltage | 120 V AC |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
