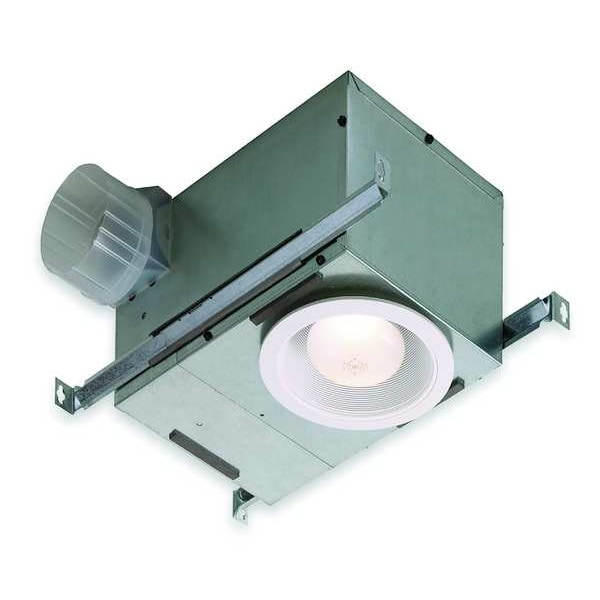

Ceiling Recessed Fan, 70 cfm cfm, 4 in Duct Dia., 120V AC, With Light
| Voltage | 120V AC |
|---|---|
| Mounting Location | Ceiling |
| CFM @ 0.100-In. SP | 70 cfm |
| Includes | Mounting Brackets |
| Phase | 1 |
| Watts | 125 |
| Duct Dia. | 4 in |
| Amps | 1.2 |
| Housing Material | Steel |
| Number of Speeds | 1 |

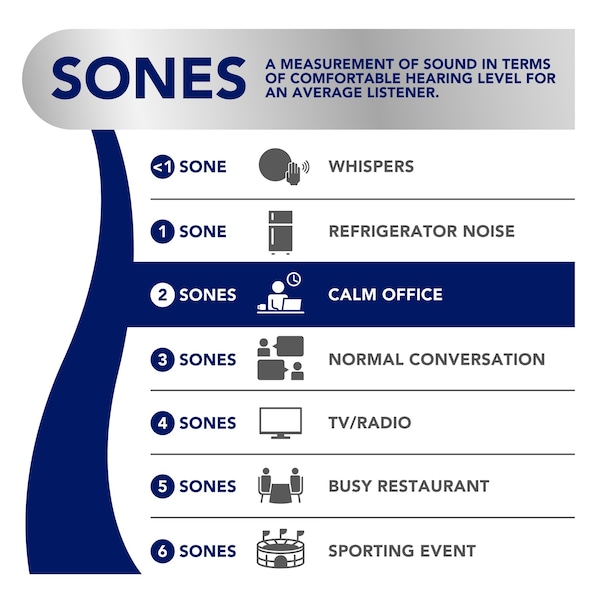

| Sones @ 0.100-In. SP @ 5 Ft. | 1.5 |
| Lighted | With Light |
| Heater | Without Heater |
| Motion Sensing | No |
| Profile | Medium |

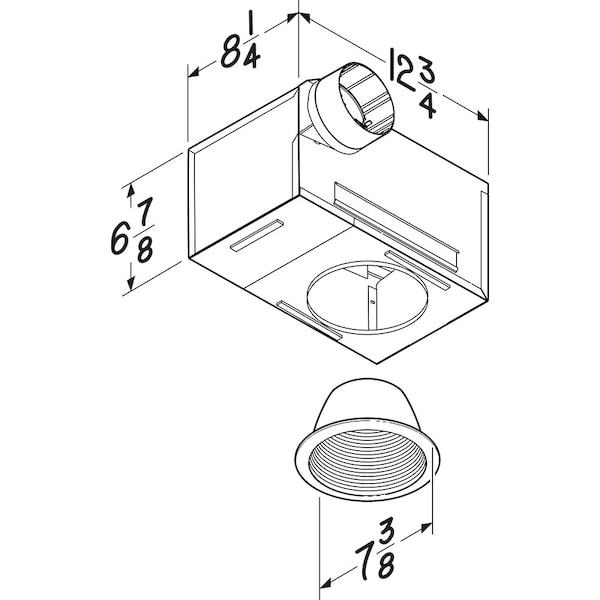

| Housing Length | 8-1/4 in |
| Requires | 75W Lamp R30 |
| Nominal RPM | 1000 RPM |
| Night-Light | No |
| Standards | AMCA, cUL Listed, UL Listed |
| Height (In.) | 6-7/8 |
| Grille Length | 7-3/8 in |
| Grille Width | 7-1/2 in |
| Hz | 60 |
| Humidity Sensing | No |
| Grille Material | Polymeric |
| Width (In.) | 12-3/4 |
| Housing Width | 12-3/4 in |
| Construction Material | Metal |
| Discharge | Horizontal |
| Housing Height | 6-7/8 in |
| Item | Recessed Fan |
| Grille Color | White |
| Motor Type | Permanently Lubricated |
| Overall Height | 6-7/8 in |
| Overall Width | 8-1/4 in |
| Width | 125 |
| Blower Wheel Material | Polymeric |
| Primary Light Wattage | 75 W |
| Exhaust Airflow @ 0.250 in SP | 56 cfm |
| Full Load Current | 1.2 A |
| Includes Grill | Yes |
| Roomside Installation | No |
| Wattage | 125 W |
| Mounting Orientation | Horizontal |
| Nameplate Voltage | 120 V AC |
| Maximum Coverage Area | 65 sq ft |
| Duct Shape | Round |
| Primary Lighting Technology | Incandescent |
| Discharge Direction | Horizontal |
| Primary Light Type | 75W, BR30, PAR30L, PAR30LN, R30 |
| Maximum Noise Level | 1.5 sones |
| Duct Diameter | 4 in |
| Frequency | 60 Hz |
| Overall Depth | 12-3/4 in |
| Vent Design | Ducted |
| Profile Width Family | Single-Wide |
| Housing Finish | Galvanized |
| Profile Height Family | Medium |
| Noise Level @ 0.100 in SP @ 5 ft | 2 sones |
| Number of Primary Lights | 1 |
| Includes Light Bulbs | No |
| Sensor Type | None |
| Exhaust Airflow @ 0.100 in SP | 70 cfm |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
