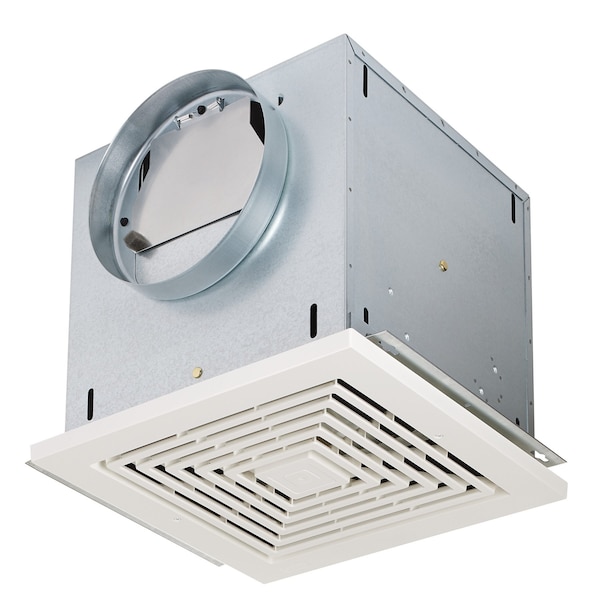

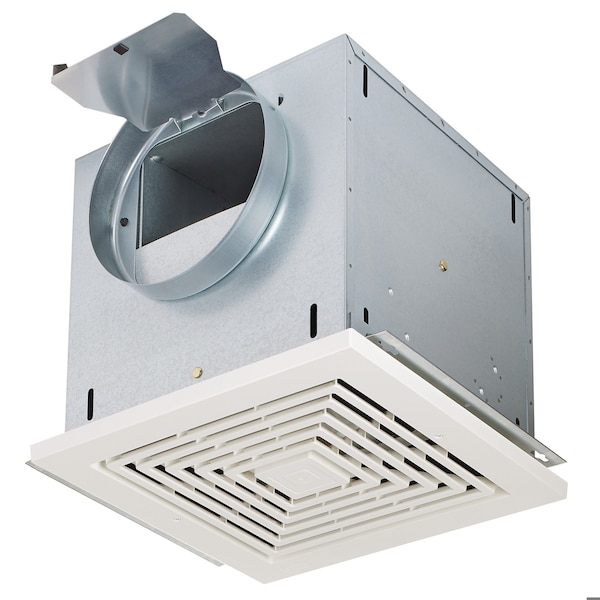

Commercial Fan, 120V AC, White Grille
| Includes | 8-Way Adjustable Mounting Brackets |
|---|---|
| Phase | Not Applicable |
| Housing Material | Galvanized Steel |
| Number of Speeds | Variable |
| Lighted | Without Light |
| Heater | Without Heater |
| Frequency | 60 Hz |
| Roomside Installation | No |
| Full Load Current | 0.6 A |
| For Cut-Out Width | 12-1/4 in |
| Item | Commercial Fan |
| Exhaust Airflow @ 0.250 in SP | 237 cfm, 249 cfm |
| Duct Shape | Round |
| Exhaust Airflow @ 0.100 in SP | 263 cfm, 277 cfm |
| Grille Material | Plastic |
| Maximum Noise Level | 1.5 sones |
| Mounting Orientation | Horizontal, Vertical |
| Vent Design | Ducted |
| Exhaust Airflow @ 0.000 in SP | 280 cfm, 296 cfm |
| Sensor Type | None |
| Standards | AMCA, ASHRAE 90.1 Compliant, cULus Listed, Energy Star, HVI, IECC-C Compliant |
| Maximum Airflow | 270 cfm |
| Profile Height Family | Low |
| Grille Width | 14 in |
| Grille Color | White |
| For Cut-Out Length | 12-1/4 in |
| Grille Length | 14 in |
| Motor Speed | 1,128 RPM, 1,144 RPM |
| Discharge Direction | Horizontal, Vertical |

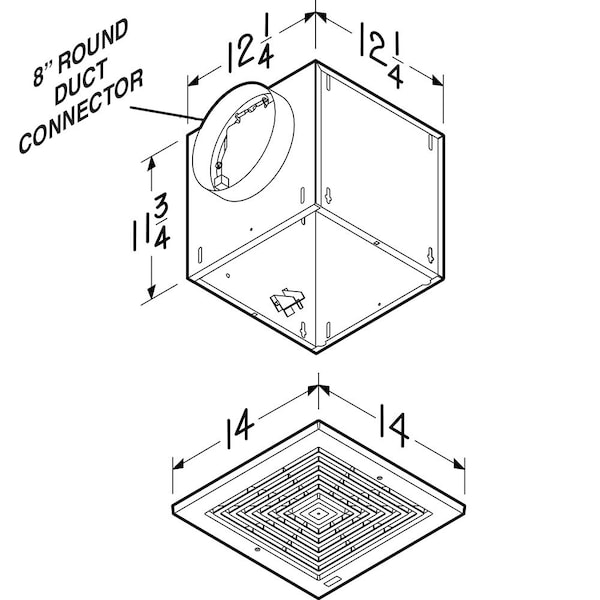

| Duct Diameter | 8 in |
| Nameplate Voltage | 120 V AC |
| Heater Wattage | Not Applicable |
| Night Light Technology | Not Applicable |
| Noise Level @ 0.100 in SP @ 5 ft | 1.5 sones |
| Overall Height | 11-3/4 in |
| Housing Finish | Not Applicable |
| Primary Light Wattage | Not Applicable |
| Maximum Coverage Area | 265 sq ft |
| Overall Depth | 12-1/4 in |
| Heater Type | Without Heater |
| Primary Lighting Technology | Not Applicable |
| Overall Width | 12-1/4 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
