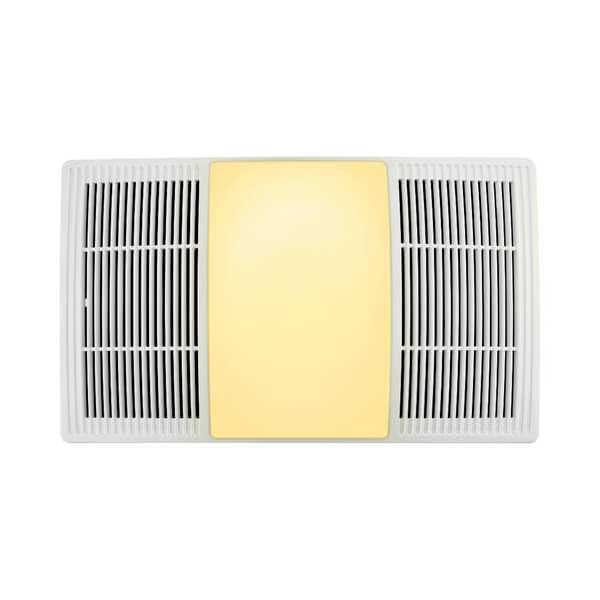

Heater Exhaust Fan, Round, 4" Dia., 110 cfm
| Includes | LED |
|---|---|
| Phase | 1 |
| Housing Material | Galvanized Steel |
| Number of Speeds | 1 |
| Lighted | With Light |
| Heater | With Heater |
| Grille Material | Plastic |
| Grille Width | 11-3/4 in |
| Standards | cULus Listed, HVI Certified |
| Item | Exhaust Fan |
| Motor Type | Permanently Lubricated |
| Grille Color | White |
| Grille Length | 17-3/4 in |
| Exhaust Airflow @ 0.000 in SP | 122 cfm |
| Blower Wheel Curve | Forward |
| Full Load Current | 14 A |
| Grille Finish | Plastic |
| Overall Height | 5-7/8 in |
| Heater Type | Heating Coil |
| Includes Light Bulbs | Yes |
| Maximum Noise Level | 2 sones |
| Discharge Direction | Horizontally |
| Housing Finish | Powder Coated |
| Roomside Installation | No |
| Duct Shape | Round |
| Overall Width | 16 in |
| Maximum Coverage Area | 150 sq ft |
| Noise Level @ 0.100 in SP @ 5 ft | 2 sones |
| Primary Light Wattage | 11.5 W |
| Wall Thickness | 16 ga |
| Primary Lighting Technology | LED |
| Vent Design | Ducted |
| Bluetooth Enabled | No |
| Profile Width Family | Single-Wide |
| Includes Grill | Yes |
| Overall Depth | 10-1/4 in |
| Heater Wattage | 1,500 W |
| Sensor Type | Humidity |
| Blower Wheel Material | Metal |
| Primary Light Type | Integrated LED Module |
| Exhaust Airflow @ 0.100 in SP | 113 cfm |
| Number of Primary Lights | 1 |
| Maximum Airflow | 110 cfm |
| Duct Diameter | 4 in |
| Nameplate Voltage | 120 V AC |
| Wattage | 35 W |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
