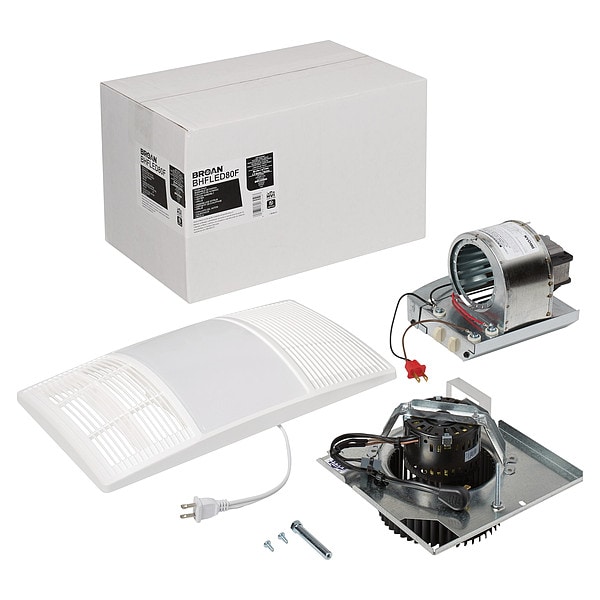

Housing Kit, White, Powder Coated, Steel
| Includes | LED |
|---|---|
| Phase | 1 |
| Housing Material | Galvanized Steel |
| Number of Speeds | 1 |
| Lighted | With Light |
| Heater | With Heater |
| Grille Width | 9-3/4 in |
| Motor Enclosure | Totally Enclosed Air Over |
| Motor Type | Permanently Lubricated |
| Item | Housing Kit |
| Grille Color | White |
| Grille Length | 16-1/4 in |
| Motor Insulation | Class B |
| Grille Material | Plastic |
| Standards | cULus Listed, HVI Certified |
| Wattage | 27 W |
| Full Load Current | 12 A |
| Duct Diameter | 4 in |
| Sensor Type | Humidity |
| Exhaust Airflow @ 0.200 in SP | 78 cfm |
| Exhaust Airflow @ 0.400 in SP | 60 cfm |
| Exhaust Airflow @ 0.100 in SP | 80 cfm |
| Bluetooth Enabled | No |
| Heater Type | Infrared/Radiant Heat Lamp |
| Maximum Noise Level | 1.5 sones |
| Nameplate Voltage | 120 V AC |
| Primary Lighting Technology | LED |
| Maximum Coverage Area | 75 sq ft |
| Housing Finish | Powder Coated |
| Blower Wheel Material | Metal |
| Overall Width | 16-1/4 in |
| Includes Grill | Yes |
| Profile Width Family | Single-Wide |
| Duct Shape | Round |
| Grille Finish | Plastic |
| Primary Light Type | Integrated LED Module |
| Noise Level @ 0.100 in SP @ 5 ft | 1.5 sones |
| Vent Design | Ducted |
| Overall Depth | 9-3/4 in |
| Wall Thickness | 16 ga |
| Exhaust Airflow @ 0.000 in SP | 87 cfm |
| Blower Wheel Curve | Forward |
| Overall Height | 8 in |
| Roomside Installation | No |
| Inlet Height | 4 in |
| Inlet Width | 4 in |
| Heater Wattage | 1,300 W |
| Primary Light Wattage | 11.5 W |
| Discharge Direction | Horizontally |
| Light Color Temperature | Daylight |
| Exhaust Airflow @ 0.250 in SP | 74 cfm |
| Maximum Airflow | 80 cfm |
| Mounting Orientation | Horizontal |
| Finish | Powder Coated |
| Color | White |
| Product Type | Housing Kit |
| Material | Steel |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
