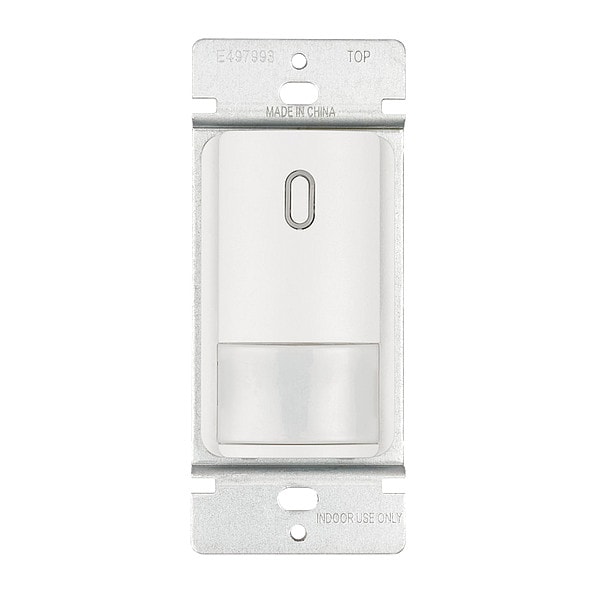

Motion Snsr, PIR, 120-277V AC, Wht
| Item | Motion Sensor |
|---|---|
| Color | White |
| Operating Voltage - Motion Sensing and Dimming | 120 to 277V AC |
| Coverage at Suggested Mounting Height | 300 sq ft |
| Sensing Technology | Passive Infrared |
| Communication Method - Motion Sensing and Dimming | Hard Wired |
| Item - Motion Sensing and Dimming | Motion Sensor |
| Color - Motion Sensing and Dimming | White |
| Height | 1.77 in |
| Time Delay - Motion Sensor | 1 min, 15 min, 30 min, 5 min |
| Lighting Technology | Fluorescent, Incandescent, LED |
| Time Delay Adjustment Method - Motion Sensor | Automatic, Manual |
| Coverage Angle - Motion Sensor | 180 Degrees |
| Voltage | 120 V |
| Installation Location - Motion Sensor | Wall Switch Box |
| Use With - Motion Sensing and Dimming | Sensor Switch nLight Control System |
| Communication Method | Hard Wired |
| Width | 1.73 in |
| Time Delay Adjustment Method | Automatic |
| Minimum Operating Temperature | 32 Degrees F |
| Maximum Operating Temperature | 104 deg F |
| Horsepower Rating | 0.5 HP |
| Maximum Mounting Height | 4 ft |
| Load Rating @ 120V AC | 300W (CFL, LED), 600W (Incandescent), 9A (1/2 HP Fan + Light) |
| Coverage Angle | 180 deg |
| Neutral Required | Yes |
| Number of Buttons | 2 |
| Dimming Type | No Dimming |
| Nightlight | Yes |
| Includes Dimming Switch | Dimming Switch Not Included |
| Includes Motion Sensor | Yes |
| Includes Wall Plate | Wall Plate Included |
| Maximum Detection Distance | 35 ft |
| Maximum Coverage Area | 900 sq ft |
| Rated Frequency | 60 Hz |
| Minimum Coverage Area | 300 sq ft |
| Compatible with Series | Sensor Switch nLight Control System |
| Minimum Time Delay | 30 sec |
| Dimming Method | No Dimming |
| Maximum Time Delay | 30 min |
| Coverage Type | Large Motion |
| Sensor Operation | Occupancy |
| Installation Location | Wall |
| Number of Gangs | 1 |
| Series | Broan-NuTone |
| Compatible with Brand | Broan |
| Fan Rated | Yes |
| Wattage | 300 |
| Bluetooth Compatibility | No |
| Amperage (Amps) | 3 |
| Automatic Shut-Off | Yes |
| Warnock Hersey Certification | No |
| UL Listed | Yes |
| Contain Electronic Equipment | Yes |
| Length | 4.17 in. |
| Battery Included | No |
| Primary Color | White |
| cULus Listed | Yes |
| cUL Listed | Yes |
| Operating Voltage | 120 to 277V AC |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
