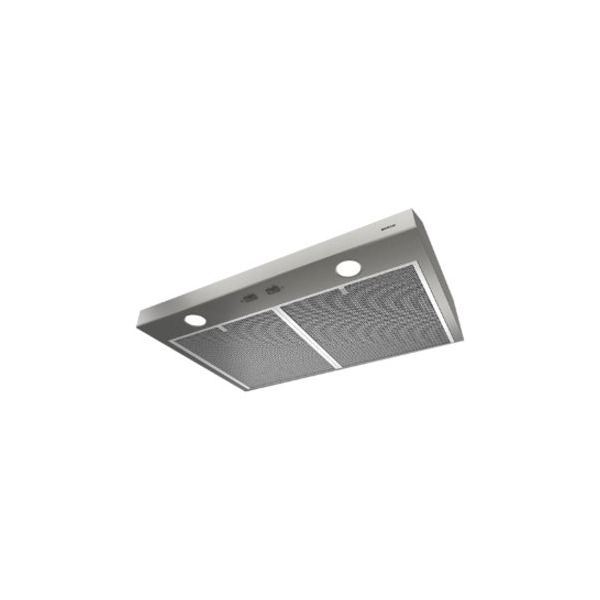

Range Hood, Under Cabinet, Silver, 1.4A
| Item | Under Cabinet Range Hood |
|---|---|
| Vent Install Type | Convertible Built-In |
| Color | Stainless Steel |
| Duct Opening | 3-1/4" x 10" or 7" dia. |
| Height (In.) | 6 |
| Width (In.) | 30 |
| Depth (In.) | 19-5/8 |
| Commercial / Residential | Residential |
| Series | BCSD1 |
| Minimum Air Flow Capacity (CFM) | 250 cfm |
| Filter Type | Mesh |
| Low Speed Sones | 1.5 |
| High Speed Sones | 4.5 |
| Wattage | 168W |
| Amps | 1.4 |
| Hz | 60 Hz |
| Voltage | 120 V |
| Number of Fan Speeds | 2 |
| Light Type | Halogen |
| Number of Lights | 2 |
| Switch Control Type | Rocker |
| Light Bulb Wattage | 50 W |
| Includes | 3-1/4" x 10" Damper/Adapter and 7" Round Adapter |
| Standards | UL Listed, ADA Compliance, HVI 2100 Certified |
| Vertical CFM | 250 |
| Residential / Commercial | Residential |
| Vertical Sones | 5 |
| Horizontal Sones | 5 |
| Type | Under Cabinet |
| Air Delivery (CFM) | 250 |
| Horizontal CFM | 210 |
| Height | 6 in |
| Width | 29.9 in |
| Depth | 19.6 in |
| Material | Steel |
| Duct Width | 3-1/4 in |
| Overall Depth | 19-1/2 in |
| Frequency | 60 Hz |
| Maximum Noise Level | 2 sones |
| Lighting Technology | Halogen |
| Maximum Airflow Capacity | 300 cfm |
| Duct Diameter | 7 in |
| Number of Speeds | 2 |
| Exhaust Application | Grease |
| Overall Height | 6 in |
| Overall Width | 30 in |
| Duct Height | 10 in |
| Airflow Capacity | 300 cfm |
| Ventilation Type | Exhaust, Recirculation |
| Full Load Current | 1.4 A |
| Hood Style | Under-Cabinet |
| Recommended Environments | Kitchen |
| Duct Shape | Rectangular |
| Nameplate Voltage | 120 V AC |
| Duct Collar Connection | 3 1/4 in x 10 in, 7 in dia. |
| Light Wattage | 50 W |
| Duct Direction | Vertical, Horizontal |
| Number of Light Fixtures | 2 |
| Package Quantity | 1 |
