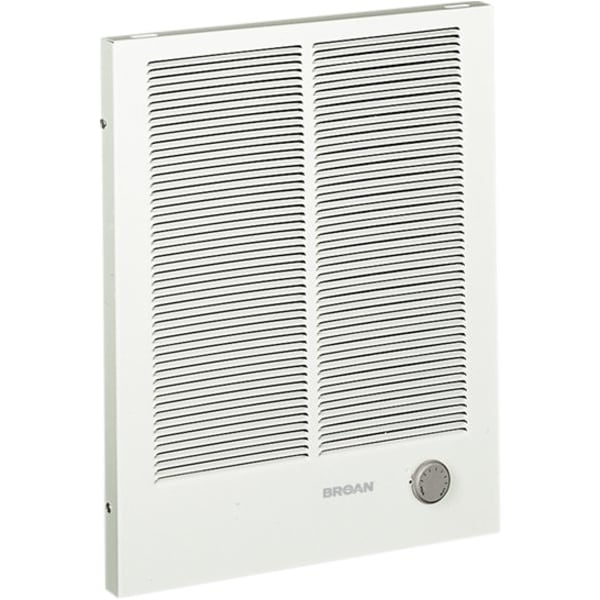

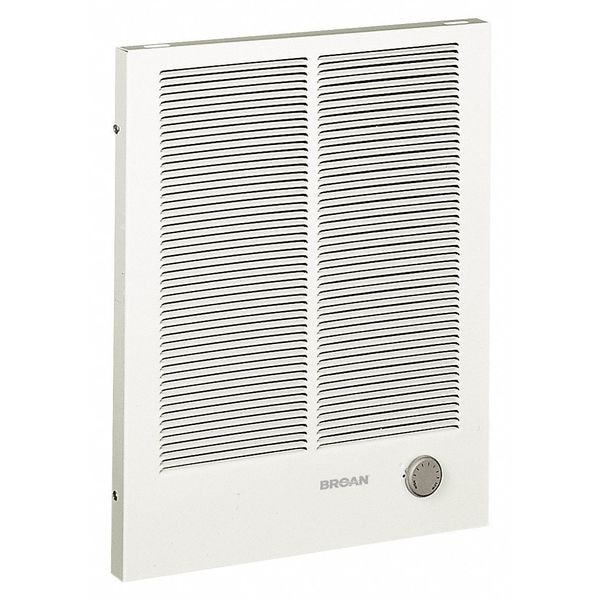

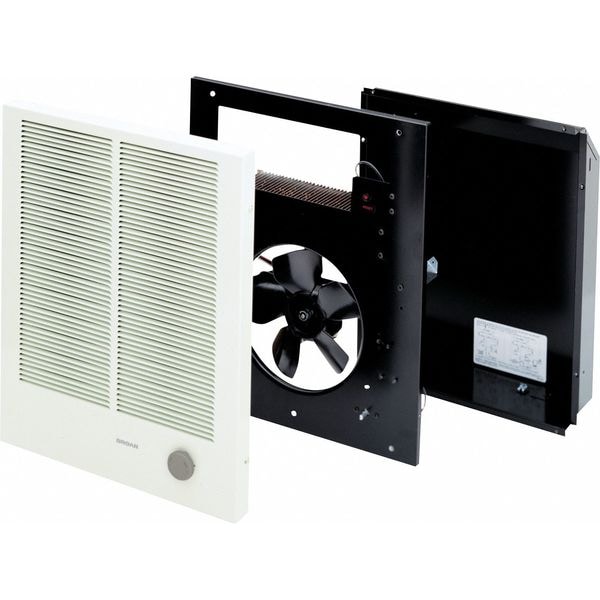

Recessed Electric Wall-Mount Heater, Recessed or Surface, 1125/2250, 1500/3000 W, 208/240V AC
| Electric Heater Item | Electric Wall Heater |
|---|---|
| Electric Heater Type | Commercial/Industrial |
| Watts | 1125/2250, 1500/3000 |
| BtuH | 5120/2560, 3840/5120 |
| Heater Voltage | 208/240 V AC |
| Electric Heater Phase | 1 |
| Wall Opening Width | 14-1/4" |
| Color | White |
| Amps AC | 5.41/10.81, 6.25/12.5 |
| Wall Opening Depth | 3-3/4" |
| Item | Recessed Electric Wall-Mount Heater |
| Grille Height | 20-1/4 in |
| Housing Width | 14-1/4 in |
| Housing Height | 18 in |
| Hz | 60 |
| Manufacturers Warranty Length | 1 yr |
| Wall Opening Height | 18 in |
| Mounting Type | Recessed or Surface |
| Housing Depth | 3-3/4 in |
| Grille Width | 16-3/8 in |
| Grille Depth | 1-1/4 in |
| Grille Material | 18 ga Steel |
| Standards | UL Listed |
| Finish | Baked Enamel |
| Features | Thermostat, Wattage Convertible, Overload Protector, Permanently Lubricated Motor |
| Application | Indoor |
| Phase | 1 |
| Voltage | 208/240V AC |
| Building Management System Compatible | No |
| Remote Control Functions | No Remote Control Included |
| Minimum Mounting Distance from Ceiling | 12 in |
| Minimum Mounting Height from Floor | 12 in |
| Thermostat Contact Type | Single Pole |
| Frequency | 60 Hz |
| Rough-In Dimensions - H x W x D | 18 in x 14-1/4 in x 3-3/4 in |
| Setback Control | No |
| Occupancy Sensor | No |
| Rough-In Height | 18 in |
| Grille Color | White |
| Automatic Fan Delay (On/Off) | Yes |
| Wattage Output | 1125 W/2250 W, 1500 W/3000 W |
| Fan Only Operation | No |
| Heating Capacity | 10,204/13,653 BtuH |
| Programming Capability | Not Programmable |
| Housing Material | Steel |
| Tamper Resistant | Yes |
| Rough-In Depth | 3-3/4 in |
| Heater Mounting Position | Horizontal Burn |
| Amperage | 10.8 A, 12.5 A, 5.4 A, 6.2 A |
| Thermostat Included | Unit-Mounted |
| Disconnect Switch | Yes |
| Rough-In Width | 14-1/4 in |
| Control Type | Thermostat |
| Smart Connectivity | No Connectivity |
| Filter Included | No |
| Heating Method | Fan Forced |
| Voltage, Phase | 208/240V AC, 1-phase |
| Hold Function | No |
| Grille Finish | Enamel |
| Thermal Overheat Protection | Manual Reset |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
