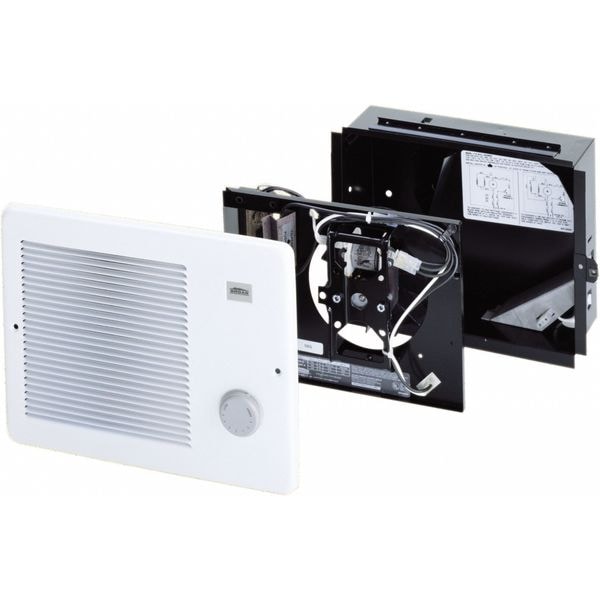

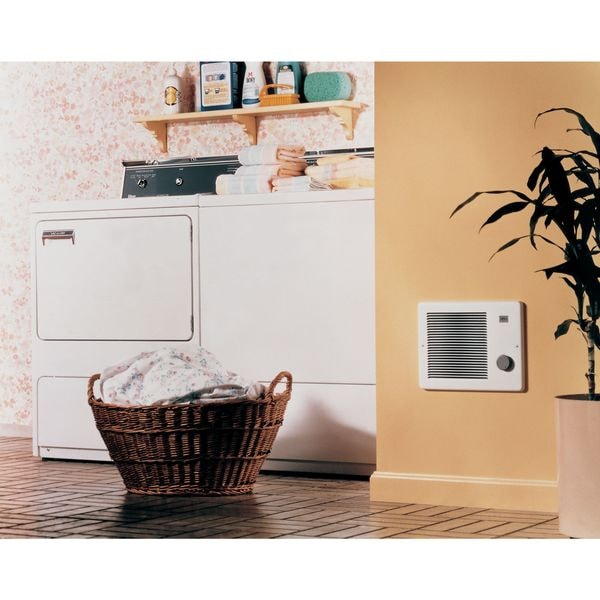

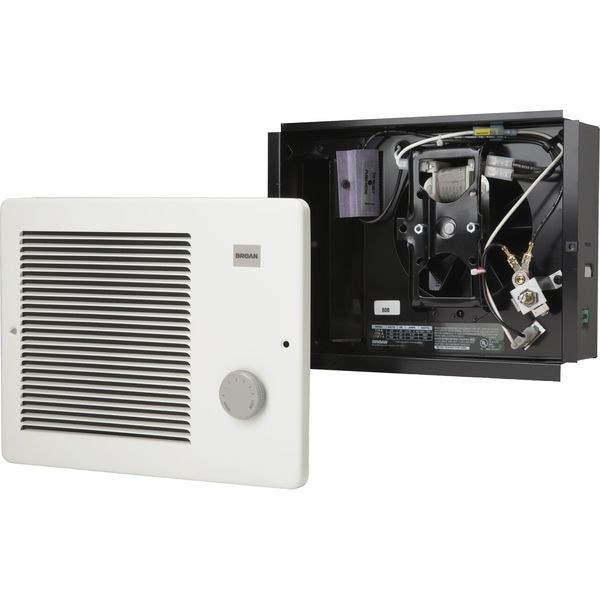

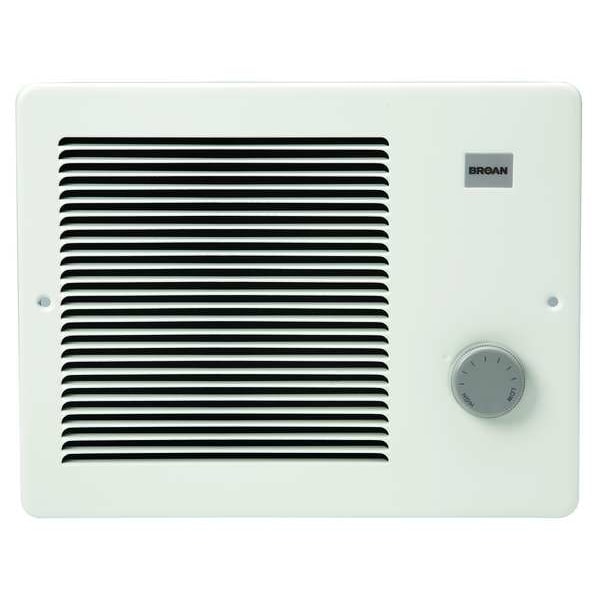

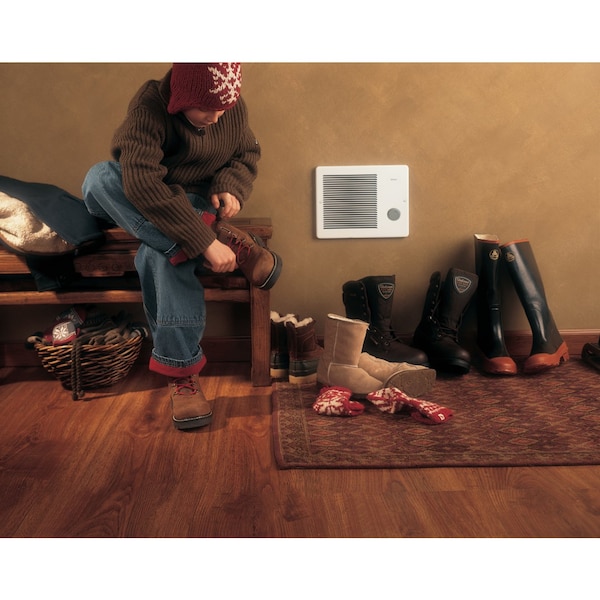

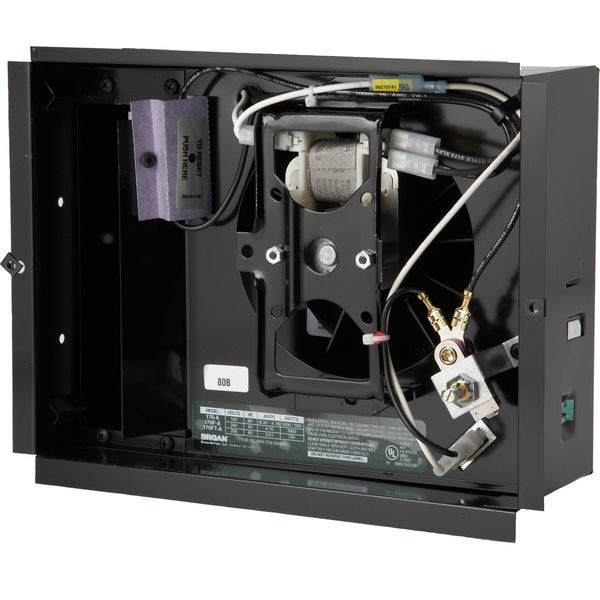

Recessed Electric Wall-Mount Heater, Recessed or Surface, 750/1500, 1125/1500 W, 120/208/240V AC
| Electric Heater Item | Electric Wall Heater |
|---|---|
| Electric Heater Type | Light Commercial/Residential |
| Watts | 750/1500, 1125/1500 |
| BtuH | 2560/5120, 3840/5120 |
| Heater Voltage | 120/208/240 V AC |
| Electric Heater Phase | 1 |
| Wall Opening Width | 10-1/4" |
| Color | White |
| Amps AC | 6.25/12.5, 5.41/6.25 |
| Wall Opening Depth | 3-3/4" |
| Standards | UL Listed |
| Grille Material | 20 ga Steel |
| Mounting Type | Recessed or Surface |
| Housing Width | 10-1/4 in |
| Housing Depth | 3-3/4 in |
| Item | Recessed Electric Wall-Mount Heater |
| Housing Height | 7-3/4 in |
| Grille Width | 12 in |
| Hz | 60 |
| Wall Opening Height | 7-3/4 in |
| Features | Thermostat, Wattage Convertible, Overload Protector, Permanently Lubricated Motor |
| Grille Height | 9-1/4 in |
| Grille Depth | 1/2 in |
| Finish | Baked Enamel |
| Manufacturers Warranty Length | 1 yr |
| Phase | 1 |
| Voltage | 120/208/240V AC |
| Filter Included | No |
| Occupancy Sensor | No |
| Housing Material | Steel |
| Wattage Output | 1125/1500, 750 W/1500 W |
| Building Management System Compatible | No |
| Grille Color | White |
| Thermostat Included | Unit-Mounted |
| Heater Mounting Position | Horizontal Burn |
| Heating Capacity | 5,120/6,827 BtuH |
| Frequency | 60 Hz |
| Disconnect Switch | Yes |
| Hold Function | No |
| Minimum Mounting Height from Floor | 6 in |
| Smart Connectivity | No Connectivity |
| Control Type | Mechanical Selector Dial |
| Rough-In Width | 10-1/4 in |
| Rough-In Depth | 3-3/4 in |
| Thermal Overheat Protection | Manual Reset |
| Amperage | 7.2 A/8.3 A |
| Automatic Fan Delay (On/Off) | No |
| Heating Method | Fan Forced |
| Fan Only Operation | No |
| Setback Control | No |
| Minimum Mounting Distance from Ceiling | 6 in |
| Voltage, Phase | 120/208/240V AC, 1-phase |
| Programming Capability | Not Programmable |
| Rough-In Dimensions - H x W x D | 7-3/4 in x 10-1/4 in x 3-3/4 in |
| Rough-In Height | 7-3/4 in |
| Thermostat Contact Type | Single Pole |
| Remote Control Functions | No Remote Control Included |
| Grille Finish | Enamel |
| Tamper Resistant | No |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
