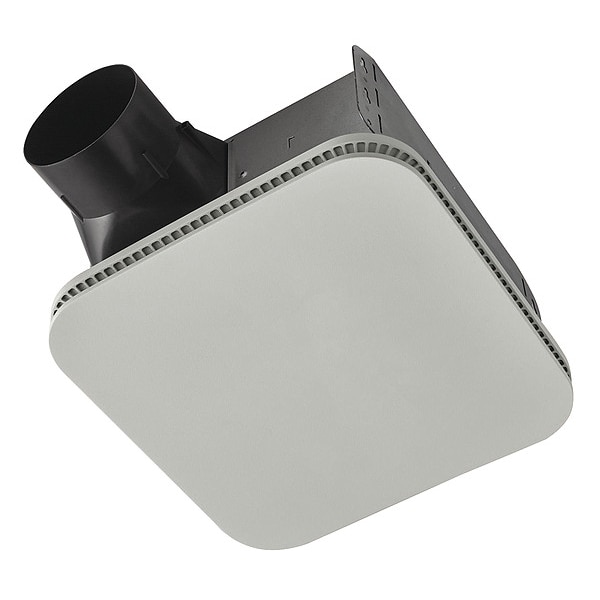

Ventilation Fan, 110 cfm cfm, 4 in Duct Dia., 120V AC, Without Light
| Voltage | 120V AC |
|---|---|
| CFM @ 0.100-In. SP | 110 cfm |
| Includes | Cleancover(TM) Grille, Ezduct Connector, Room Side Installation/Ceiling Or Wall Install, Snapfit Flange Kit |
| Watts | 23.4 |
| Duct Dia. | 4 in |
| Amps | 0.3 |
| Housing Material | Steel |
| Number of Speeds | 1 |
| Sones @ 0.100-In. SP @ 5 Ft. | 1 |
| Lighted | Without Light |
| Heater | Without Heater |
| Motion Sensing | No |
| Profile | Medium |
| Night-Light | No |
| Requires | Ductwork |
| Housing Length | 10 in |
| Grille Width | 12-1/2 in |
| Housing Height | 5-3/4 in |
| Motor Type | Permanently Lubricated |
| Grille Color | White |
| Humidity Sensing | No |
| Standards | ENERGY STAR Certified Certified, HVI Certified, UL Listed |
| Housing Width | 9-1/4 in |
| Green Certification or Other Recognition | Energy Star® Certified |
| Item | Ventilation Fan |
| Heat Watts | 0 |
| Grille Length | 12-1/2 in |
| Discharge | Horizontal, Vertical |
| Hz | 60 |
| Grille Material | Plastic |
| Length | 12.25 |
| Height | 5.75 |
| Material | Plastic |
| Color | White |
| Width | 12.25 |
| Application | 110 CFM, Powerful ventilation to remove moisture and reduce the risk of mold or mildew in most full baths |
| Overall Width | 10 in |
| Overall Height | 5-3/4 in |
| Nameplate Voltage | 120 V AC |
| Duct Diameter | 4 in |
| Full Load Current | 0.3 A |
| For Cut-Out Width | 10-1/2 in |
| Exhaust Airflow @ 0.250 in SP | 92 cfm |
| Exhaust Airflow @ 0.100 in SP | 110 cfm |
| Wattage | 23 W |
| Roomside Installation | Yes |
| Frequency | 60 Hz |
| Profile Width Family | Single-Wide |
| Overall Depth | 9-1/4 in |
| Maximum Noise Level | 1 sones |
| Sensor Type | None |
| For Cut-Out Length | 9-3/4 in |
| Housing Finish | Galvanized |
| Maximum Coverage Area | 105 sq ft |
| Profile Height Family | Medium |
| Noise Level @ 0.100 in SP @ 5 ft | 1 sones |
| Vent Design | Ducted |
| Includes Grill | Yes |
| Duct Shape | Round |
| Includes Light Bulbs | No |
| Discharge Direction | Horizontal, Vertical |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
