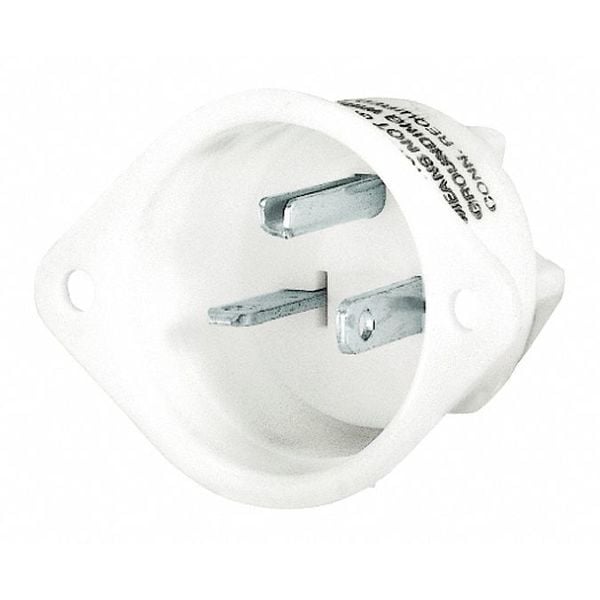

Flanged Inlet, 20 A Amps, 125V AC, Panel Mount, Inlet Outlet, 5-20R, White
| Item | Flanged Inlet |
|---|---|
| Outlet Type - Plugs and Receptacles | Inlet |
| Application Environment | Commercial |
| Mounting Type - Plugs and Receptacles | Panel |
| Amps - Plugs and Receptacles | 20 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-20R |
| Surge Suppression | No |
| Tamper Resistant | No |
| Weather Resistant - Plugs and Receptacles | No |
| Color - Plugs and Receptacles | White |
| Wiring Method - Plugs and Receptacles | Side, Back |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Power Indicator | No |
| Wiring Method | Back |
| Special Features | Corrosion resistant |
| Weather Resistant | No |
| Voltage | 125VAC |
| Number of Gangs | 1 |
| Outlet Type | Inlet |
| Standards | CSA Certified, UL Listed |
| Phase | Single |
| Corrosion Resistant | Yes |
| Amps | 20 |
| Mounting Type | Panel |
| Amps - Plugs and Receptacles | 20 |
| Item - Plugs and Receptacles | Receptacle |
| Color | White |
| Material | Nylon |
| HP | 1 hp |
| Sub-Category | Inlets |
| Height | 1.55 in |
| Width | 2-1/2 in |
| Overall Depth | 2-1/2 in |
| Wire Connection Type | Screw Terminals |
| Resistance Properties | Corrosion Resistant |
| Market | Commercial, Industrial |
| Grounding | Grounded |
| Grade | General Use |
| Mount Hole Center-to-Center Height | 2 in |
| Current Rating | 20 A |
| Housing Color | White |
| NEMA Plug Configuration | 5 to 20 P |
| Connection Orientation | Straight |
| Visual Indicator Lights | GFCI Tripped/No Power |
| For Location | Indoor |
| Includes | Mounting Hardware |
| Housing Material | Nylon |
| Number of Blades | 3 |
| Receptacle Type | Single |
| Flange Type | Flanged |
| Flange Shape | Oval |
| Surge Protection | No |
| Minimum Operating Temperature | -40 deg C |
| Includes Mounting Hardware | Yes |
| Voltage Rating | 125V AC |
| Horsepower Rating | 1 HP |
| Maximum Operating Temperature | 75 deg C |
| Face Diameter | 1.61 in |
| For Environment | Dry |
| Cover Type | No Cover |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Display Size | Standard Sized Product |
| Nema Rating | 5-20P |
| Insulation | Insulated Body |
| Amperage Rating | 20 A |
| Type | Inlet |
| Wattage | 2500 |
| Connectivity | Terminals |
| Style | Clamp Type |
| Series | Heavy Duty |
| Voltage Rating Description | 125 V |
| Application | Extra Heavy Duty Industrial |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact |
| Current / Amperage Rating | 20 A |
| Item Type | Single Flanged |
| Material - Mounting Hardware | Screw Mounting |
| Dielectric Strength | Withstands 3000V Minimum in |
| Length | 1.84 in |
| Package Quantity | 1 |
