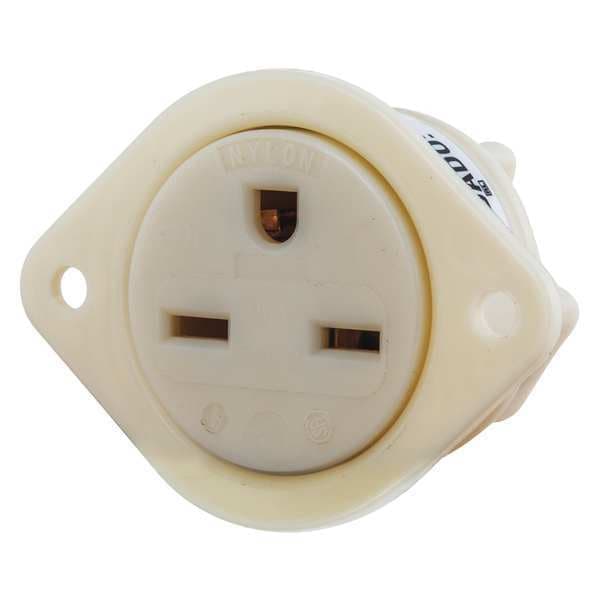

Flanged Receptacle, 15 A Amps, 250V AC, Panel Mount, Inlet Outlet, 6-15R, White
| Item | Flanged Receptacle |
|---|---|
| Outlet Type - Plugs and Receptacles | Inlet |
| Application Environment | Industrial |
| Mounting Type - Plugs and Receptacles | Panel |
| Amps - Plugs and Receptacles | 15 A |
| Voltage - Plugs and Receptacles | 250V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 6-15R |
| Surge Suppression | No |
| Tamper Resistant | No |
| Weather Resistant - Plugs and Receptacles | No |
| Color - Plugs and Receptacles | White |
| Wiring Method - Plugs and Receptacles | Back |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Power Indicator | No |
| Weather Resistant | No |
| Standards | CSA Certified, UL Listed |
| Amps - Plugs and Receptacles | 15 |
| Corrosion Resistant | No |
| Wiring Method | Back |
| Phase | Single |
| Material | Nylon |
| Voltage | 250VAC |
| Number of Gangs | 1 |
| Item - Plugs and Receptacles | Receptacle |
| Mounting Type | Panel |
| HP | 1 1/2 hp |
| Amps | 15 |
| Sub-Category | Flanged Receptacles |
| Color | White |
| Outlet Type | Inlet |
| Housing Color | White |
| Grounding | Grounded |
| For Location | Indoor |
| Resistance Properties | Impact Resistant |
| Connection Orientation | Straight |
| Surge Protection | No |
| Wire Connection Type | Screw Terminals |
| Current Rating | 15 A |
| AFCI | No |
| Face Diameter | 1-1/2 in |
| Polarized | Yes |
| Cover Type | No Cover |
| Mount Type | Flush |
| Flange Type | Flanged |
| Market | Commercial, Industrial |
| Mount Hole Center-to-Center Height | 2 in |
| Voltage Rating | 250V AC |
| Receptacle Type | Single |
| Horsepower Rating | 1.5 HP |
| Overall Depth | 1-1/2 in |
| GFCI | No |
| Housing Material | Nylon |
| NEMA Receptacle Configuration | 6-15R |
| Grade | General Use |
| Nema Rating | 6-15R |
| Voltage Rating Description | 250 V |
| Item Type | Smooth Face |
| Series | Heavy Duty |
| Style | Smooth Face |
| Type | Flanged Receptacle |
| Current / Amperage Rating | 15 A |
| Display Size | Standard Sized Product |
| Amperage Rating | 15 A |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Application | Commercial/Industrial |
| Package Quantity | 1 |
