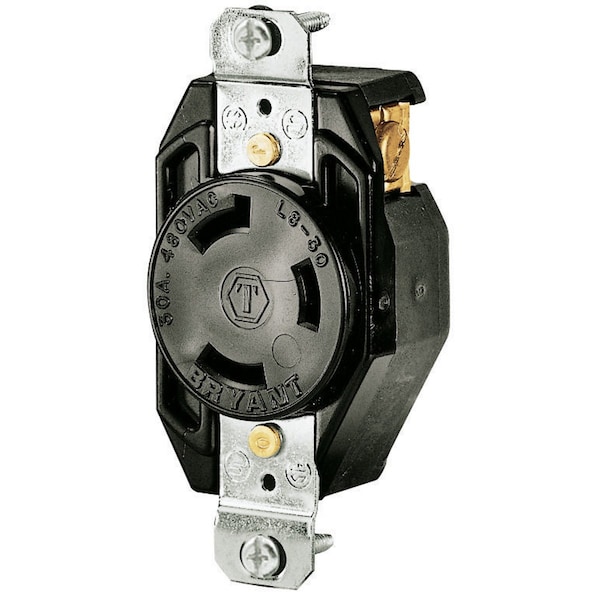

Flush Receptacle, 30A 480V AC, 2-Pole 3-Wire Grounding, L8-30R, Screw Terminal, White
| Voltage | 480 VAC |
|---|---|
| Amps | 30 |
| Wiring Style | Single Receptacle |
| Mounting Type | Screw Mounting |
| Material | Composite |
| Application | Extra Heavy Duty Industrial |
| Features | Combination back and side wiring terminals accept #14 through #8 AWG solid or stranded conductors; Heavy duty mounting straps are nickel-plated to resist corrosion, wide width design assures secure assembly; NEMA rating and configuration are molded into face for easy identification; One-piece, rivetless copper-alloy contact design reduces heat buildup and provides secure blade retention |
| Wire Size | #14 AWG to #8 AWG |
| Operating Temp. | Maximum Continuous: 75A Deg C; Minimum Continuous: -40A Deg C w/o impact |
| Nema Rating | L8-30R |
| Number Of Poles | 2-Pole |
| Number Of Wires | 3-Wire |
| Height | 1.24 in |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact |
| Voltage Rating | 480 VAC |
| Insulation | Insulated Body |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Connectivity | Screw Terminals |
| Style | Single Receptacle |
| Display Size | Standard Sized Product |
| Width | 1.7 in |
| Item Type | 30A Single Nylon Receptacle |
| Type | Receptacle |
| Length | 3.28 in |
| Material - Mounting Hardware | Screw Mounting |
| Amperage Rating | 30 A |
| Dielectric Strength | Withstands 3000V Minimum in |
| Package Quantity | 1 |
