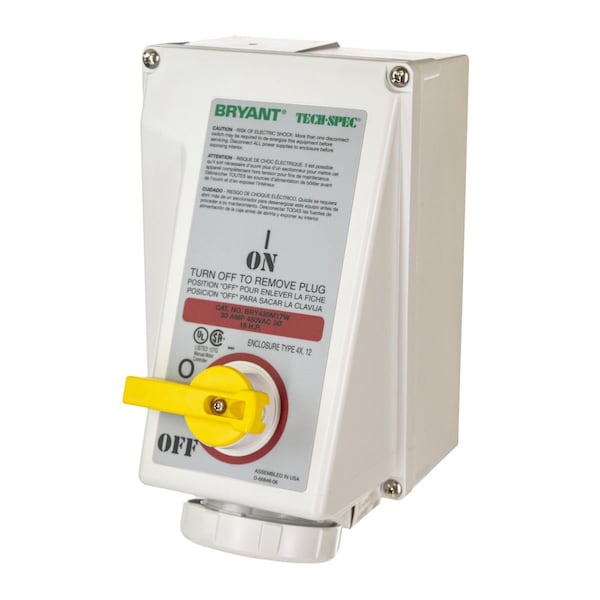

IEC Pin and Sleeve Device, Female Mech Interlocked Receptacle, 20A 3-Phase Delta 480V AC, Watertight
| Type | Receptacle |
|---|---|
| Phase | Three Phase |
| Material | Composite |
| Application | High Ampacity Connections |
| Color | Red |
| Wire Size | #14 AWG to #10 AWG |
| Series | Non-Fused Interlocks |
| Connectivity | Pressure Terminal Screws |
| Wattage | 9600 W |
| Material - Mounting Hardware | Screw Mounting |
| Voltage Rating | 3 Phase 480 V |
| Number Of Poles | 3-Pole |
| Item Type | Mechanically Interlocked Single |
| Amperage Rating | 20 A |
| Nema Rating | Non-NEMA |
| Number Of Wires | 4-Wire |
| Package Quantity | 1 |
