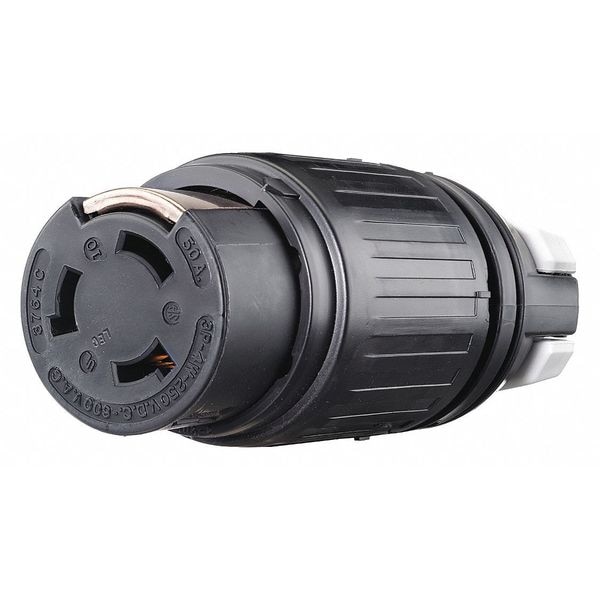

Locking Connector, Non-NEMA, 50 A, 250V AC, Single Phase, 3 Pole, Screw Terminals
| Item | Locking Connector |
|---|---|
| NEMA Receptacle Configuration | Non-NEMA |
| Current Rating | 50 A |
| Voltage Rating | 250V AC |
| Phase | Single |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Standard |
| Connection Orientation | Straight |
| Shrouded | No |
| Grounding | Grounded |
| Housing Color | Black, White |
| Cap Type | No Cap |
| For Maximum Cable Diameter | 1-1/4 in |
| For Minimum Cable Diameter | 0.83 in |
| IP Rating | IP20 |
| Standards | CSA Certified, UL Listed |
| Resistance Properties | Chemical Resistant, Impact Resistant |
| NEMA Plug Configuration - Plugs and Receptacles | 50A, Non-NEMA |
| Grade | Industrial |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Corrosion Resistant | No |
| Material | Nylon |
| Amps | 50 |
| Cord Size | 0.83 to 1-1/4 in |
| Polarized | Yes |
| Market | Industrial |
| For Location | Indoor |
| Minimum Operating Temperature | -40 deg C |
| Maximum Wire Size | 8 AWG |
| Power Indicating Light | No |
| Overall Length | 6-1/2 in |
| For Environment | Dry |
| Housing Material | Composite |
| Maximum Operating Temperature | 75 deg C |
| Minimum Wire Size | 18 AWG |
| Midget Locking | No |
| Amperage Rating | 50 A |
| Conductor Range | #6 AWG |
| Width | 2.56 in |
| Style | Extra Heavy Duty |
| Height | 2.56 in |
| Application | Heavy Duty Industrial |
| Insulation | Insulated Body |
| Display Size | Standard Sized Product |
| Wire Size | #18 AWG to #8 AWG |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Material - Mounting Hardware | Cord Mounted |
| Length | 6-1/2 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Grade - Plugs and Receptacles | Industrial |
| Antimicrobial | No |
| Item - Plugs and Receptacles | Locking Connector |
| Amps - Plugs and Receptacles | 50 |
| Color | Black |
| NEMA Configuration | Non-NEMA |
| Power Indicator | No |
| Voltage | 600VAC/250VDC |
| Color - Plugs and Receptacles | Black |
| Voltage - Plugs and Receptacles | 600V AC/250V DC |
| Package Quantity | 1 |
