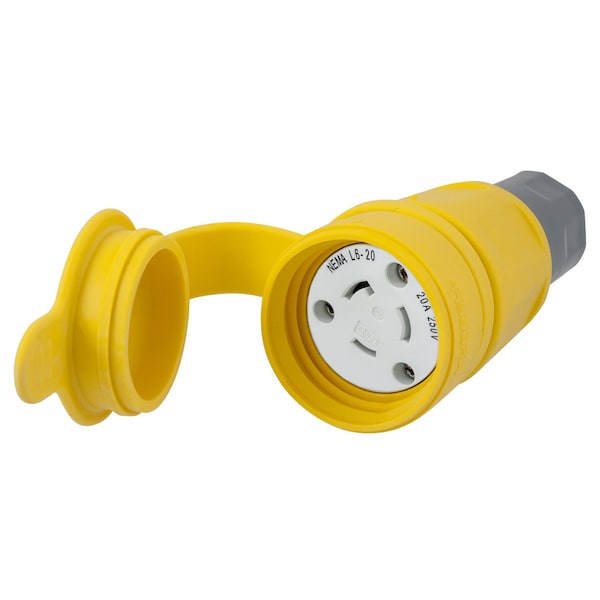

Dispositivo de bloqueo, elastomérico, cuerpo de conector hembra, 20A 250V, 2 polos 3 cables a tierra, L6-20R.
| Item - Plugs and Receptacles | Watertight Connector |
|---|---|
| Amps | 20 |
| Voltage | 250 V |
| Color - Plugs and Receptacles | Yellow |
| Color | Yellow |
| Type | Connector Body |
| Number Of Wires | 3-Wire |
| Number Of Poles | 2-Pole |
| Nema Rating | L6-20R |
| Item Type | 20A Connector, Watertight Connector |
| Voltage Rating | 250 V |
| Performance | Dielectric voltage:2000V AC if rated 300V or less, 3000V AC if rated above 300VMoisture resistance:UL Listed to 3R, 3RX, 4, 4X, 6, 6P, 12UV resistance:All exposed materials are UV stabilizedFlammability:UL94V2 (plugs, connectors, and interiors) |
| Amperage Rating | 20 A |
| Features | Smooth body design minimizes collection points simplifying the wash down process; Free-floating cap allows unwanted material to wash away during sanitation; Unique cone seal prevents dirt and debris from collecting at the cable entrance; PBT strain relief nut provides unparalleled impact resistance |
| Width | 2.51 in |
| Height | 5.69 in |
| Industry Standard(s) | IP69KListed to UL498Certified to CSA C22.2 No. 42Meets NEMA® WD-1, WD-6, and ANSI StandardsIP66 SuitabilityNSF Certified (plugs, connectors and receptacles) |
| Wire Size | Min. cord: #16/3 SJ, #18/3 S, #18/4 SJ, #18/4 S, #18/5 S;Max. cord: #10/3 S, #10/4 S, #10/5 S |
| Length | 2.51 in |
| Package Quantity | 1 |
