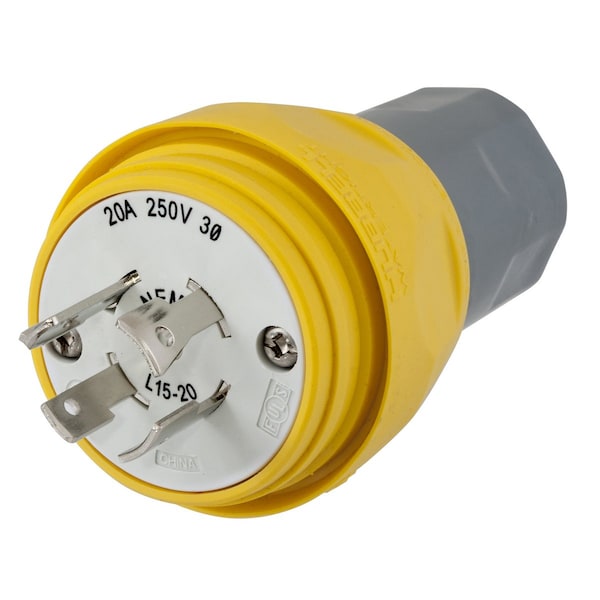

Dispositivo de bloqueo, elastomérico, macho, 20A 3 fases 250V AC, 3 polos 4 cables a tierra, L15-20P
| Length | 2.51 in |
|---|---|
| Amps - Plugs and Receptacles | 20 A |
| Color | Yellow |
| Wire Size | Min. cord: #16/3 SJ, #18/3 S, #18/4 SJ, #18/4 S, #18/5 S;Max. cord: #10/3 S, #10/4 S, #10/5 S |
| Number Of Wires | 4-Wire |
| Number Of Poles | 3-Pole |
| Nema Rating | L15-20P |
| Type | Plugs |
| Voltage Rating | 3 Phase 250 VAC |
| Height | 3.96 in |
| Performance | Dielectric voltage:2000V AC if rated 300V or less, 3000V AC if rated above 300VMoisture resistance:UL Listed to 3R, 3RX, 4, 4X, 6, 6P, 12UV resistance:All exposed materials are UV stabilizedFlammability:UL94V2 (plugs, connectors, and interiors) |
| Amperage Rating | 20 A |
| Item Type | Plug |
| Width | 2.51 in |
| Features | Triple bypass seal keeps water away from electrical connections and works with previously installed devices; Corrosion-resistant connection points; High conductivity brass termination; Cone seal accomodates any cable range; Keyed interior for easy installation |
| Industry Standard(s) | IP69KListed to UL498Certified to CSA C22.2 No. 42Meets NEMA® WD-1, WD-6, and ANSI StandardsIP66 SuitabilityNSF Certified (plugs, connectors and receptacles) |
| Package Quantity | 1 |
