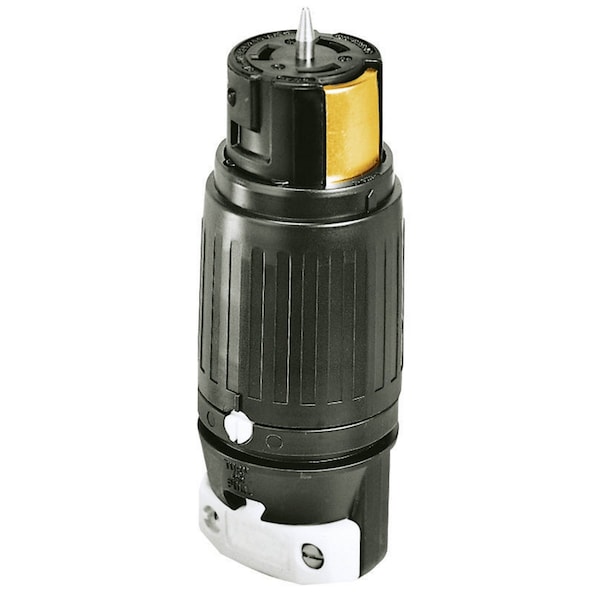

Dispositivo de bloqueo, conector hembra, 50A 125/250V, 3 polos 4 cables con conexión a tierra, no NEMA, terminal de tornillo.
| Item - Plugs and Receptacles | 50A Connector |
|---|---|
| Amps | 50 |
| Voltage | 125/250 VAC |
| Number of Wires | 4-Wire Grounding |
| Wiring Style | Extra Heavy Duty |
| Color - Plugs and Receptacles | Black |
| Color | Black |
| Material | Composite |
| Application | Heavy Duty Industrial |
| Type | Connector Body |
| Number Of Poles | 3-Pole |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Height | 2.56 in |
| Amperage Rating | 50 A |
| Length | 6-1/2 in |
| Item Type | 50A Heavy Duty Connector |
| Voltage Rating | 125/250 VAC |
| Insulation | Insulated Body |
| Style | Extra Heavy Duty |
| Features | Box terminal with hex socket threaded slug, permits high clamping pressure on conductors without damaging strands; Thermoplastic polyester interior provides heat resistance and impact strength; Oversized contacts minimize operating temperature |
| Connectivity | Pressure Terminal Screws |
| Width | 2.56 in |
| Wire Size | #8 AWG to #4 AWG |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Display Size | Standard Sized Product |
| Number Of Conductors | 4-Wire Grounding |
| Material - Mounting Hardware | Cord Mounted |
| Conductor Range | #6 AWG |
| Package Quantity | 1 |
