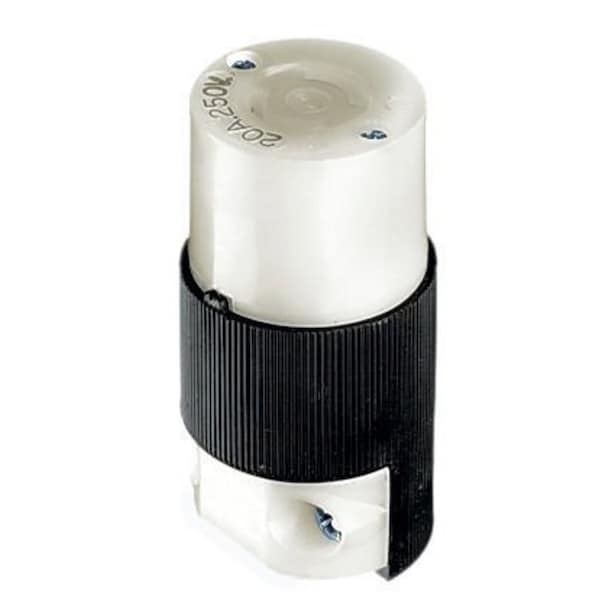

Locking Device, Female Connector Body, 20A 250V, 2-Pole 2-Wire Non-Grounding, L2-20R, Scrw Term, Gry
| Color | Black, White |
|---|---|
| Material | Composite |
| Application | Heavy Duty Industrial |
| Type | Connector Body |
| Insulation | Insulated Body |
| Number Of Conductors | 2-Pole Non-Grounding |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Number Of Poles | 2-Pole |
| Voltage Rating | 250 V |
| Number Of Wires | 2-Wire |
| Nema Rating | L2-20R |
| Display Size | Standard Sized Product |
| Conductor Range | #14 AWG |
| Connectivity | Screw Terminals |
| Style | Two-Piece Cord Clamp |
| Material - Mounting Hardware | Cord Mounted |
| Height | 2.78 in |
| Wire Size | #18 AWG to #8 AWG |
| Length | 1.53 in |
| Item Type | 20A Connector |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Amperage Rating | 20 A |
| Package Quantity | 1 |
