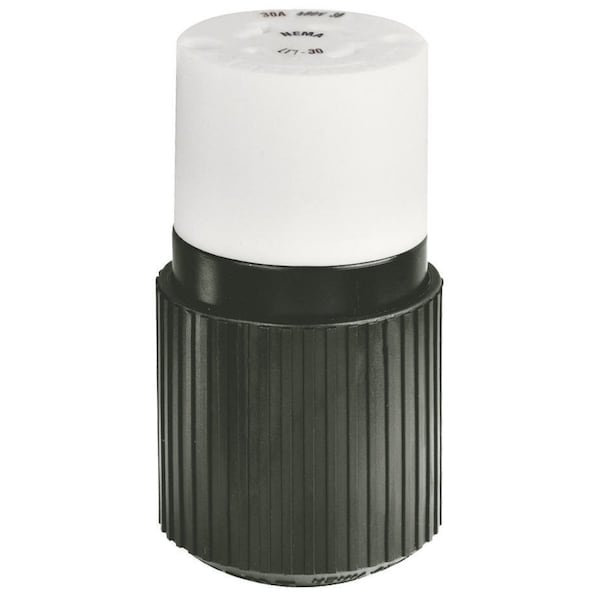

Dispositivo de bloqueo, cuerpo de conector hembra, 30A 3-Phase Delta 600V AC, 3 polos 4 cables a tierra, L17-30R
| Item - Plugs and Receptacles | 30A Triple Gripper Nylon Connector |
|---|---|
| Amps | 30 |
| Voltage | 600V AC |
| Number of Wires | 4-Wire Grounding |
| Wiring Style | Cord Clamp |
| Color - Plugs and Receptacles | Black, White |
| Color | Black, White |
| Material | Composite |
| Application | Heavy Duty Industrial |
| Type | Connector Body |
| Number Of Poles | 3-Pole |
| Nema Rating | L17-30R |
| Material - Mounting Hardware | Cord Mounted |
| Width | 2.13 in |
| Display Size | Standard Sized Product |
| Number Of Conductors | 4-Wire Grounding |
| Style | Internal Cord Clamp |
| Item Type | 30A Triple Gripper Nylon Connector |
| Amperage Rating | 30 A |
| Length | 2.13 in |
| Wire Size | #18 AWG to #8 AWG |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Features | Face and body feature alignment keys for easy assembly; Amperage, voltage and NEMA configuration imprinted on face for easy identification; Impact/chemical resistant, toughened nylon construction; Internal “self-centering†Triple Gripper® cord grip with “radius teeth†design provides secure cord retention |
| Voltage Rating | 3 Phase 600 VAC |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Conductor Range | #12 AWG to #8 AWG |
| Height | 3.9 in |
| Connectivity | Screw Terminals |
| Insulation | Insulated Body |
| Package Quantity | 1 |
