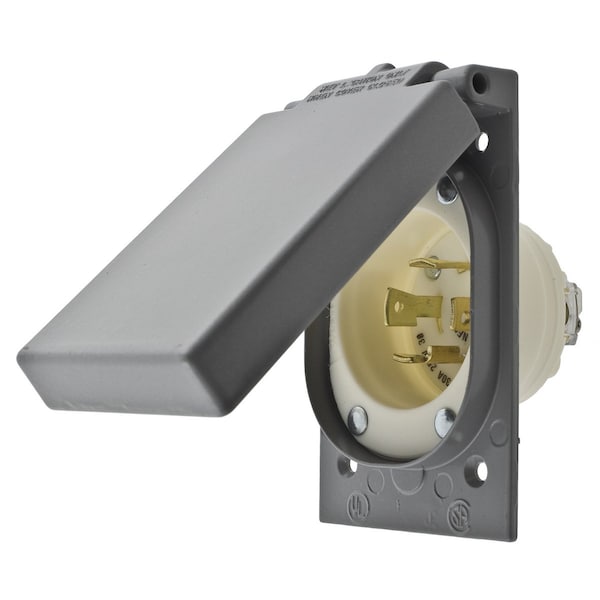

Locking Device, Flanged Inlet, 30A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, L15-30P
| Color | White |
|---|---|
| Application | Extra Heavy Duty Industrial |
| Features | Impact resistant thermoplastic construction; Backwired terminations for ease of installation; #10-32 Multiple drive terminal screws; Mounting screws included; Weather Protective Cover |
| Material | Composite |
| Wire Size | #14 AWG to #8 AWG |
| Voltage Rating | 3 Phase 250 VAC |
| Connectivity | Screw Terminals |
| Environmental Conditions | Weather Resistant |
| Width | 2.88 in |
| Item Type | 30A Weather Protective Power Inlet |
| Insulation | Insulated Body |
| Number Of Wires | 4-Wire |
| Nema Rating | L15-30P |
| Display Size | Standard Sized Product |
| Style | Weatherprotective |
| Dielectric Strength | Withstands 3500V |
| Type | Flanged Inlet |
| Material - Mounting Hardware | Screw Mounting |
| Amperage Rating | 30 A |
| Number Of Poles | 3-Pole |
| Length | 2.88 in |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact |
| Height | 2.02 in |
| Package Quantity | 1 |
