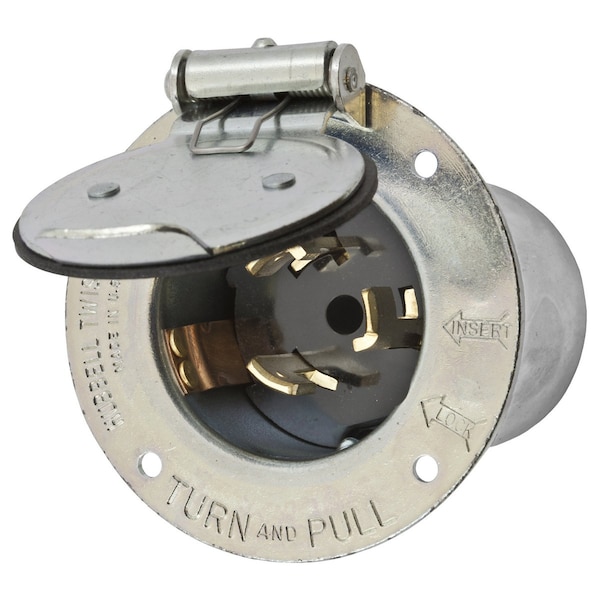

Locking Device, Flanged Inlet, 50A Phase Delta 250V AC, Non- NEMA, Screw Terminal, With Lift Cover
| Voltage | 250 VAC |
|---|---|
| Amps | 50 |
| Color | Metallic |
| Wiring Style | Extra Heavy Duty |
| Mounting Type | Screw Mounting |
| Material | Composite |
| Features | Metallic flanged casing provides maximum strength and protection; Thermoset interior provides superior heat resistance |
| Application | Extra Heavy Duty Industrial |
| Wire Size | #18 AWG to #8 AWG |
| Operating Temp. | Maximum Continuous: 75A Deg C; Minimum Continuous: -40A Deg C w/o impact |
| Number Of Wires | 4-Wire |
| Number Of Poles | 3-Pole |
| Width | 3-1/2 in |
| Display Size | Standard Sized Product |
| Insulation | Insulated Body |
| Style | Extra Heavy Duty |
| Length | 2.77 in |
| Amperage Rating | 50 A |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact |
| Type | Flanged Inlet |
| Item Type | 50A Male Flanged Inlet |
| Voltage Rating | 3 Phase 250 VAC |
| Connectivity | Pressure Terminal Screws |
| Dielectric Strength | Withstands 3000V Minimum in |
| Material - Mounting Hardware | Screw Mounting |
| Height | 3-1/2 in |
| Environmental Conditions | Weather Resistant |
| Package Quantity | 1 |
