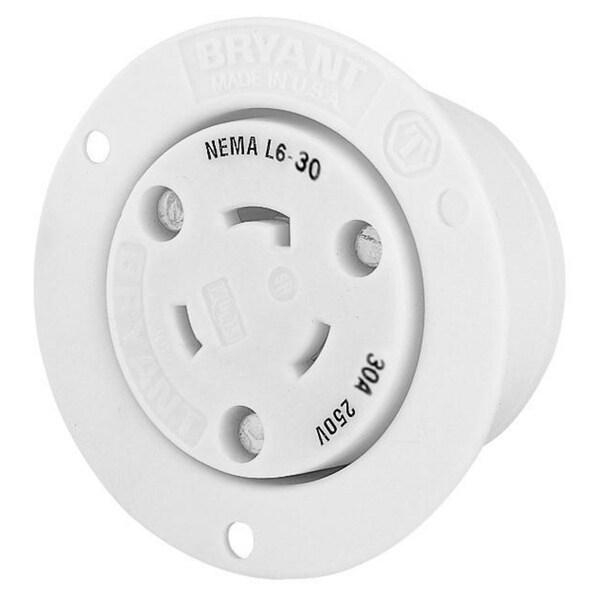

Locking Device, Flanged Receptacle, 30A 250V, 2-Pole 3-Wire Grounding, L6-30R, Screw Terminal, White
| Voltage | 250 V |
|---|---|
| Amps | 30 |
| Color | White |
| Phase | Single Phase |
| Wiring Style | Equipment Base |
| Mounting Type | Screw Mounting |
| Material | Composite |
| Application | Extra Heavy Duty Industrial Specification Grade |
| Features | Impact resistant thermoplastic construction; Backwired terminations for ease of installation; #10-32 Multiple drive terminal screws; Mounting screws included |
| Wire Size | #14 AWG to #8 AWG |
| Number Of Poles | 2-Pole |
| Nema Rating | L6-30R |
| Number Of Wires | 3-Wire |
| Display Size | Standard Sized Product |
| Style | Equipment Base |
| Amperage Rating | 30 A |
| Height | 2.02 in |
| Item Type | Flanged Receptacle |
| Width | 2.88 in |
| Material - Mounting Hardware | Screw Mounting |
| Voltage Rating | 250 V |
| Connectivity | Terminal Screws |
| Type | Flanged Receptacle |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Length | 2.88 in |
| Package Quantity | 1 |
