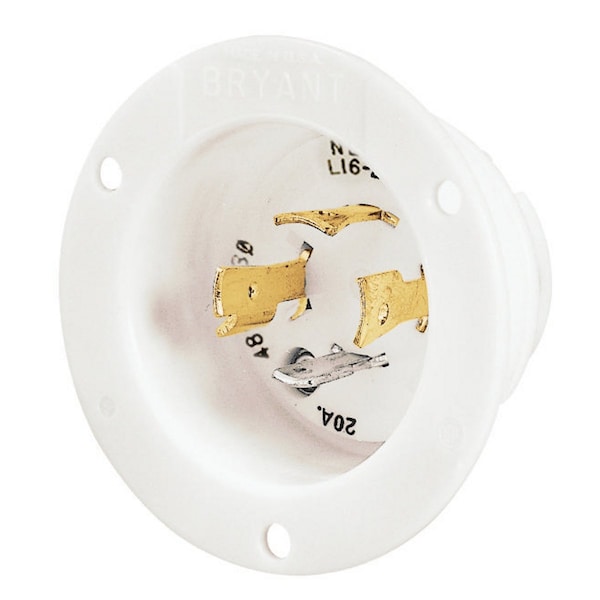

Locking Device, Flngd Inlet, 20A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grndng, L16-20P, Scrw Terminal
| Color | White |
|---|---|
| Features | Impact resistant thermoplastic construction; Backwired terminations for ease of installation; #10-32 Multiple drive terminal screws; Mounting screws included |
| Material | Composite |
| Application | Extra Heavy Duty Industrial |
| Wire Size | #18 AWG to #8 AWG |
| Dielectric Strength | Withstands 3000V Minimum |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Number Of Wires | 4-Wire |
| Item Type | 20A Flanged Inlet |
| Length | 3.06 in |
| Nema Rating | L16-20P |
| Type | Flanged Inlet |
| Number Of Poles | 3-Pole |
| Amperage Rating | 20 A |
| Voltage Rating | 3 Phase 480 VAC |
| Width | 3.06 in |
| Style | Equipment Base |
| Display Size | Standard Sized Product |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact |
| Height | 2.03 in |
| Material - Mounting Hardware | Screw Mounting |
| Connectivity | Screw Terminals |
| Insulation | Insulated Body |
| Package Quantity | 1 |
