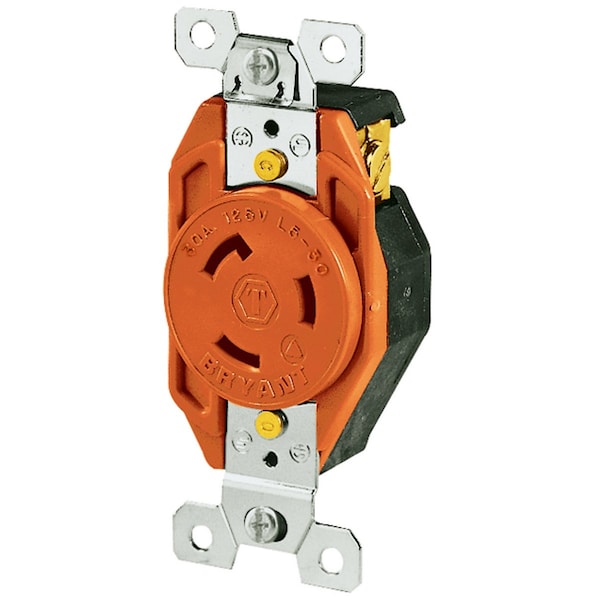

Locking Device, Isolated Ground, 30A 125V, 2-Pole 3-Wire Grndng, L5-30R, Screw Terminal, Black
| Voltage | 125 V |
|---|---|
| Amps | 30 |
| Phase | Single Phase |
| Wiring Style | Isolated Ground |
| Material | Composite |
| Mounting Type | Screw Mounting |
| Application | Extra Heavy Duty Industrial Specification Grade |
| Features | Limits electrical noise on the equipment grounding circuit by providing two grounding paths for the installation; Nylon deep face design; Triple-wipe brass line contacts; Ground contacts and ground termination; Nickel and brass plated wrap-around steel yoke |
| Wire Size | #14 AWG to #8 AWG |
| Number Of Poles | 2-Pole |
| Number Of Wires | 3-Wire |
| Nema Rating | L5-30R |
| Display Size | Standard Sized Product |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Connectivity | Terminal Screws |
| Voltage Rating | 125 V |
| Amperage Rating | 30 A |
| Type | Single Receptacle |
| Series | Locking |
| Style | Isolated Ground |
| Length | 3.28 in |
| Material - Mounting Hardware | Screw Mounting |
| Height | 1.24 in |
| Item Type | 30A Single Nylon Receptacle |
| Width | 1.7 in |
| Package Quantity | 1 |
