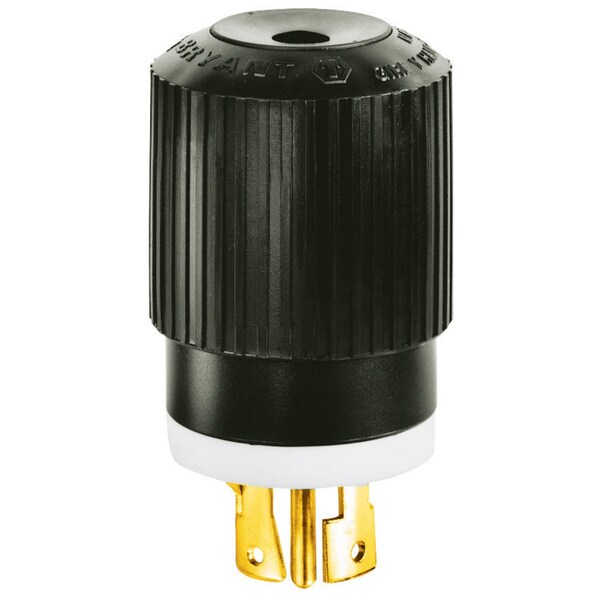

Locking Device, Male Plg, 30A 3- Phase Wye 277/480V AC, 4-Pole 5-Wire Grndng, L22-30P, Scrw Terminal
| Length | 2.13 in |
|---|---|
| Phase | Three Phase |
| Application | Extra Heavy Duty Industrial |
| Color | Black, White |
| Material | Composite |
| Wire Size | #18 AWG to #8 AWG |
| Nema Rating | L22-30P |
| Width | 2.13 in |
| Connectivity | Screw Terminals |
| Item Type | 30A Triple Gripper Nylon Plug |
| Number Of Wires | 5-Wire |
| Features | Hand grip features wide-rib, non-slip design; Configuration-specific plug face surrounds blades to prevent infiltration of contaminants; Captive, combination Slot/Phillips assembly screws; Double wall construction for extra durability; Neutral blade is nickel-plated for easy identification; Internal “self-centering†Triple Gripper® cord grip with “radius teeth†design provides secure cord retention |
| Voltage Rating | 3 Phase Y 277/480 VAC |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Display Size | Standard Sized |
| Height | 2.86 in |
| Number Of Poles | 4-Pole |
| Material - Mounting Hardware | Cord Mounted |
| Type | Plugs |
| Amperage Rating | 30 A |
| Style | Internal Cord Clamp |
| Package Quantity | 1 |
