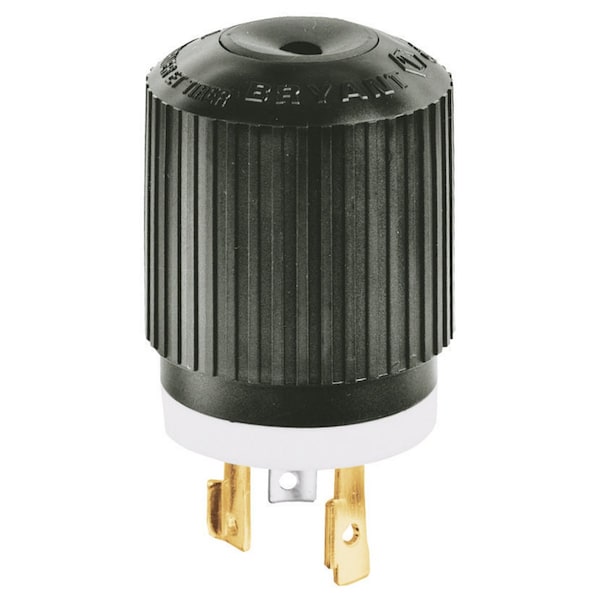

Locking Device, Male Plug, 30A 28V DC, 2-Pole 3-Wire Grounding, FSL1P, Screw Terminal, Blk and Wht
| Color | Black, White |
|---|---|
| Length | 2.13 in |
| Height | 2.86 in |
| Phase | Single Phase |
| Width | 2.13 in |
| Application | Extra Heavy Duty Industrial |
| Material | Composite |
| Features | Hand grip features wide-rib, non-slip design; Configuration-specific plug face surrounds blades to prevent infiltration of contaminants; Captive, combination Slot/Phillips assembly screws; Double wall construction for extra durability; Neutral blade is nickel-plated for easy identification; Internal “self-centering†Triple Gripper® cord grip with “radius teeth†design provides secure cord retention |
| Type | Plugs |
| Nema Rating | FSL1-P |
| Amperage Rating | 30 A |
| Material - Mounting Hardware | Cord Mounted |
| Number Of Wires | 3-Wire |
| Wire Size | #18 AWG to #8 AWG |
| Item Type | 30A Triple Gripper Nylon Plug |
| Connectivity | Screw Terminals |
| Style | Internal Cord Clamp |
| Display Size | Standard Sized |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Voltage Rating | 28 VDC |
| Number Of Poles | 2-Pole |
| Package Quantity | 1 |
