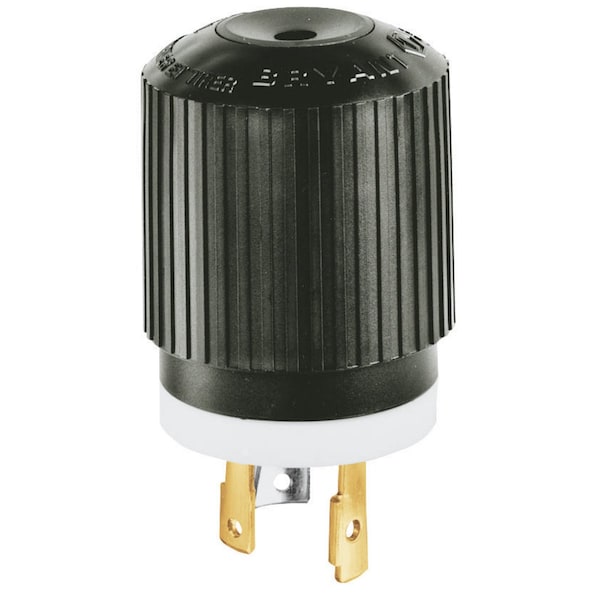

Dispositivo de bloqueo, clavija macho, 30A 480V CA, conexión a tierra de 2 polos y 3 cables, L8-30P, terminal de tornillo, negro y blanco.
| Wiring Style | Internal Cord Clamp |
|---|---|
| Length | 2.13 in |
| Amps - Plugs and Receptacles | 30 A |
| Phase | Single Phase |
| Color | Black, White |
| Material | Composite |
| Application | Extra Heavy Duty Industrial |
| Wire Size | #18 AWG to #8 AWG |
| Nema Rating | L8-30P |
| Number Of Poles | 2-Pole |
| Number Of Wires | 3-Wire |
| Material - Mounting Hardware | Cord Mounted |
| Style | Internal Cord Clamp |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Type | Plugs |
| Cord Type | All Listed Portables |
| Width | 2.13 in |
| Wattage | 14400 |
| Voltage Rating Description | 480V AC |
| Amperage Rating | 30 A |
| Item Type | 30A Triple Gripper Nylon Plug |
| Height | 2.86 in |
| Connectivity | Screw Terminals |
| Current Rating | 30 A |
| Display Size | Standard Sized |
| Voltage Rating | 480 VAC |
| Features | Hand grip features wide-rib, non-slip design; Configuration-specific plug face surrounds blades to prevent infiltration of contaminants; Captive, combination Slot/Phillips assembly screws; Double wall construction for extra durability; Neutral blade is nickel-plated for easy identification; Internal “self-centering†Triple Gripper® cord grip with “radius teeth†design provides secure cord retention |
| Package Quantity | 1 |
