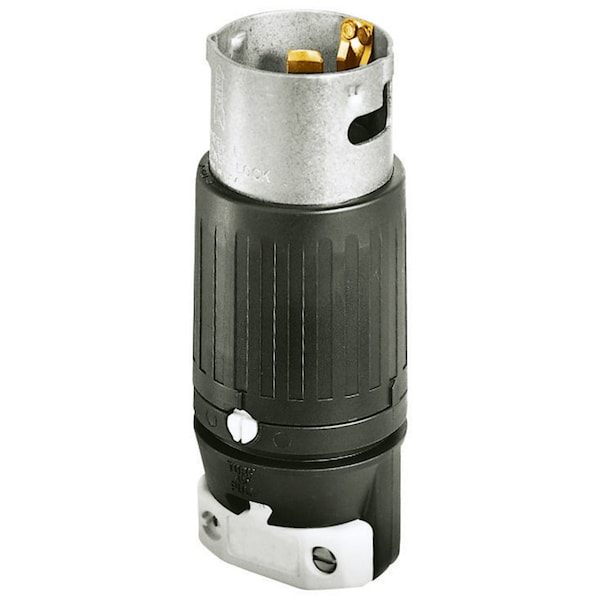

Dispositivo de bloqueo, conector macho, 50A 3-Fase Delta 480V CA, 3 polos 4 cables con toma de tierra, sin estándar NEMA, terminales de tornillo.
| Length | 6.38 in |
|---|---|
| Phase | Three Phase |
| Material | Composite |
| Color | Black |
| Application | Extra Heavy Duty Industrial |
| Wire Size | #18 AWG to #8 AWG |
| Material - Mounting Hardware | Cord Mounted |
| Number Of Wires | 4-Wire |
| Amperage Rating | 50 A |
| Display Size | Standard Sized |
| Style | Extra Heavy Duty |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Width | 2.56 in |
| Item Type | Male Plug |
| Voltage Rating | 3 Phase 480 VAC |
| Connectivity | Screw Terminals |
| Features | Super tough nylon housing offers better impact qualities; Stainless steel shroud protects contacts and prevents mismating; Box terminal with hex socket threaded slug, permits high clamping pressure on conductors without damaging strands; Thermoplastic polyester interior provides heat resistance and impact strength |
| Height | 2.56 in |
| Type | Plugs |
| Number Of Poles | 3-Pole |
| Package Quantity | 1 |
