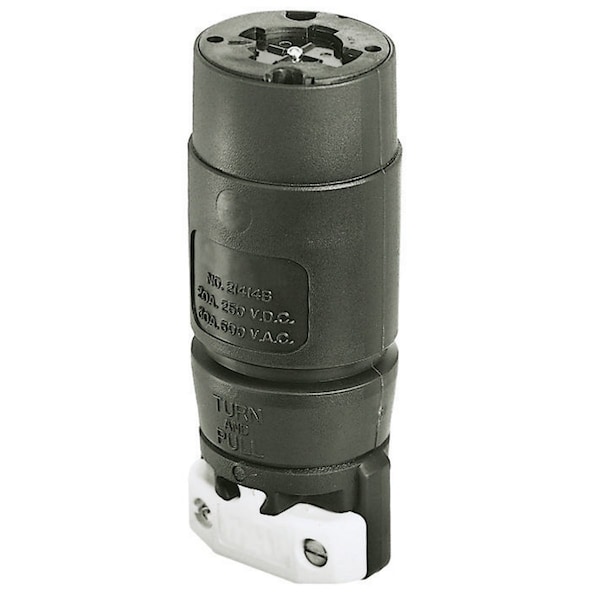

Locking Devices, Bryant Power Interruptingl, Female Connector Body, 30A 250V DC/600V AC, Non-NEMA
| Item - Plugs and Receptacles | 20A / 30A Connector |
|---|---|
| Amps | 20A/30 A |
| Voltage | 250 VDC/600 VAC |
| Number of Wires | 4-Wire Grounding |
| Wiring Style | Grounding |
| Color - Plugs and Receptacles | Black, White |
| Color | Black, White |
| Material | Composite |
| Application | Heavy Duty Industrial |
| Type | Connector Body |
| Number Of Poles | 3-Pole |
| Display Size | Standard Sized Product |
| Voltage Rating | 250 VDC/600 VAC |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Features | Spring loaded safety shutter contains arcing when mating or un-mating devices under load; Spring loaded safety shutter automatically ejects the plug eliminating contact teasing; Box terminals in conjunction with screws with pressure pads provide maximum termination strength and dependabilit; Three-piece clamp assembly provides maximum strain relief and protects against entry of moisture and dust |
| Style | Grounding |
| Insulation | Insulated Body |
| Connectivity | Pressure Terminal Screws |
| Width | 2.44 in |
| Length | 2.44 in |
| Material - Mounting Hardware | Cord Mounted |
| Wire Size | #18 AWG to #8 AWG |
| Number Of Conductors | 4-Wire Grounding |
| Conductor Range | #12 AWG to #8 AWG |
| Height | 6 in |
| Item Type | 20A / 30A Connector |
| Amperage Rating | 20A/30 A |
| Package Quantity | 1 |
