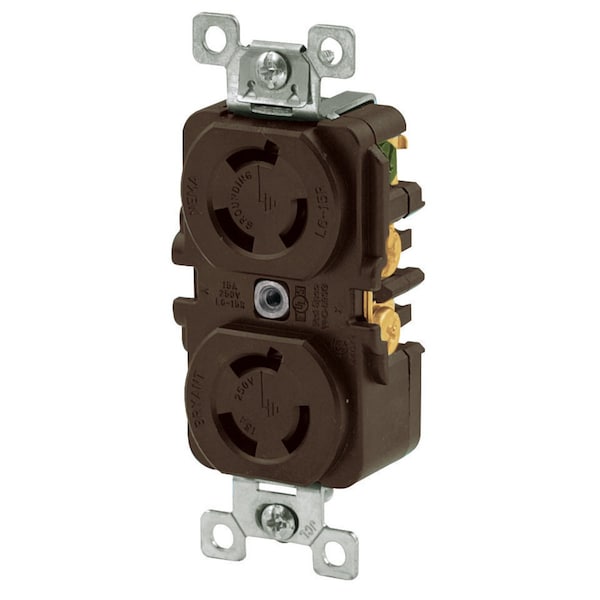

Locking Devices, Duplex Receptacle, 15A 250V, 2-Pole 3-Wire Grounding, L6-15R, Screw Terminal, Brown
| Phase | Single Phase |
|---|---|
| Material | Composite |
| Features | Reinforced thermoplastic construction; Single piece, all brass contacts; Single point break-off tabs; Mounting strap tabs lock the body and base together |
| Application | Extra Heavy Duty Industrial Specification Grade |
| Wire Size | #14 AWG to #8 AWG |
| Number Of Poles | 2-Pole |
| Nema Rating | L6-15R |
| Height | 1.17 in |
| Voltage Rating | 250 V |
| Width | 1.7 in |
| Amperage Rating | 15 A |
| Item Type | 15A Duplex Receptacle |
| Type | Receptacle |
| Style | Duplex Receptacle |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Length | 3.28 in |
| Number Of Wires | 3-Wire |
| Connectivity | Terminal Screws |
| Material - Mounting Hardware | Screw Mounting |
| Display Size | Standard Sized Product |
| Package Quantity | 1 |
