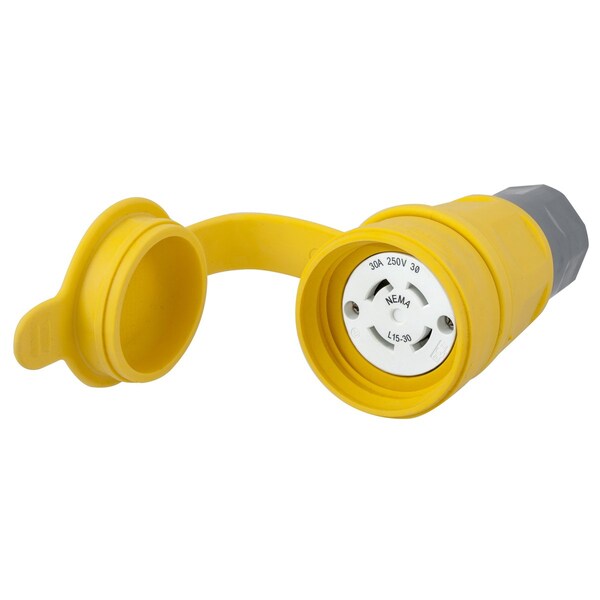

Dispositivos de bloqueo, Elastomérico, Conector hembra, 30A 3-Fase Delta 250V AC, L15-30R, Terminal de tornillo.
| Item - Plugs and Receptacles | Watertight Connector, 30A Connector |
|---|---|
| Amps | 30 |
| Voltage | 250V AC |
| Color - Plugs and Receptacles | Yellow |
| Color | Yellow |
| Type | Connector Body |
| Height | 5.67 in |
| Width | 2.77 in |
| Features | Smooth body design minimizes collection points simplifying the wash down process; Free-floating cap allows unwanted material to wash away during sanitation; Unique cone seal prevents dirt and debris from collecting at the cable entrance; PBT strain relief nut provides unparalleled impact resistance |
| Length | 2.77 in |
| Nema Rating | L15-30R |
| Wire Size | Min. cords: #12/3 SJ, #16/3 S, #14/4 SJ, #18/4 S, #18/5 S;Max. cord: #8/3 S, #8/4 S, #10/5 S |
| Voltage Rating | 3 Phase 250 VAC |
| Industry Standard(s) | IP69KListed to UL498Certified to CSA C22.2 No. 42Meets NEMA® WD-1, WD-6, and ANSI StandardsIP66 SuitabilityNSF Certified (plugs, connectors and receptacles) |
| Number Of Wires | 4-Wire |
| Amperage Rating | 30 A |
| Number Of Poles | 3-Pole |
| Item Type | Watertight Connector |
| Performance | Dielectric voltage:2000V AC if rated 300V or less, 3000V AC if rated above 300VMoisture resistance:UL Listed to 3R, 3RX, 4, 4X, 6, 6P, 12UV resistance:All exposed materials are UV stabilizedFlammability:UL94V2 (plugs, connectors, and interiors) |
| Package Quantity | 1 |
