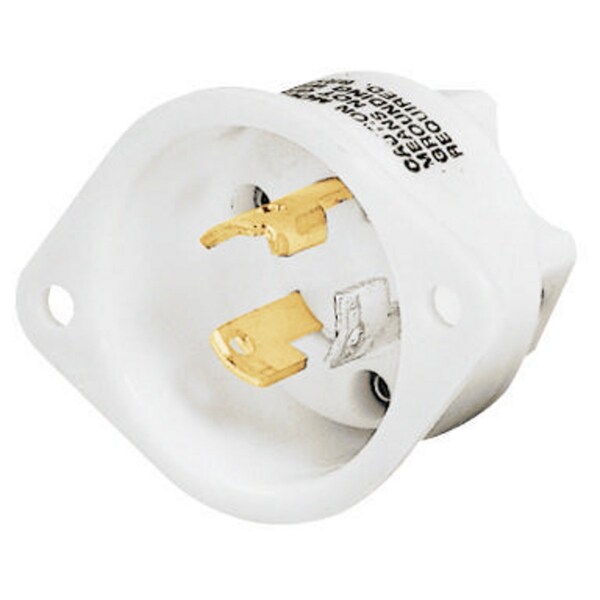

Locking Devices, Flanged Inlet, 15A 125V, 2-Pole3-Wire Grounding, L5-15P, Screw Terminal, White
| Voltage | 125 V |
|---|---|
| Amps | 15 |
| Color | White |
| Wiring Style | Equipment Base |
| Mounting Type | Screw Mounting |
| Application | Extra Heavy Duty Industrial |
| Material | Composite |
| Wire Size | #14 AWG to #10 AWG |
| Operating Temp. | Maximum Continuous: 75A Deg C; Minimum Continuous: -40A Deg C w/o impact |
| Number Of Wires | 3-Wire |
| Nema Rating | L5-15P |
| Number Of Poles | 2-Pole |
| Insulation | Insulated Body |
| Height | 1.68 in |
| Amperage Rating | 15 A |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact |
| Material - Mounting Hardware | Screw Mounting |
| Voltage Rating | 125 V |
| Type | Flanged Inlet |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Style | Equipment Base |
| Width | 2-1/2 in |
| Connectivity | Screw Terminals |
| Item Type | 15A Flanged Inlet |
| Display Size | Standard Sized Product |
| Length | 1.84 in |
| Dielectric Strength | Withstands 3000V Minimum in |
| Package Quantity | 1 |
