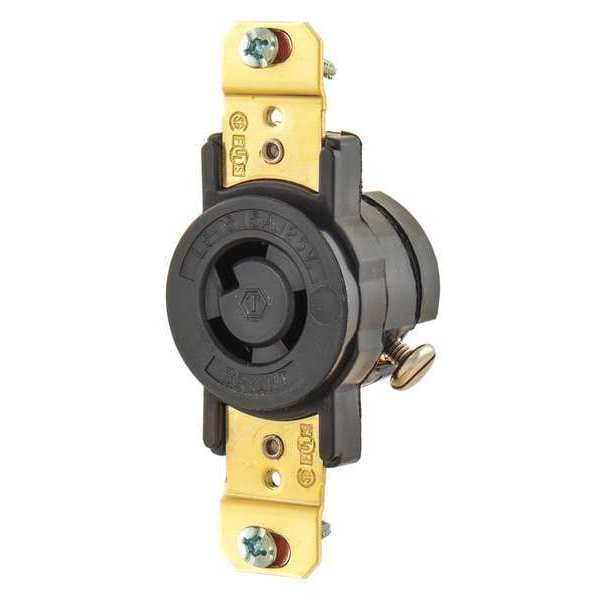

Locking Receptacle, L5-15R, 15 A, 125V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals
| Item | Locking Receptacle |
|---|---|
| NEMA Receptacle Configuration | L5-15R |
| Current Rating | 15 A |
| Voltage Rating | 125V AC |
| Phase | Single |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Wire Connection Type | Screw Terminals |
| Shrouded | No |
| Grounding | Grounded |
| Housing Color | Black |
| Mount Type | Flush |
| Cover Type | No Cover |
| IP Rating | Not Rated |
| Standards | CSA Certified, UL Listed |
| Resistance Properties | Moisture Resistant |
| Flange Type | Non-Flanged |
| Wiring Style | Standard |
| Material | Reinforced Thermoplastic Polyester/Nylon |
| Mounting Type | Flush Mount |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Grade | Industrial |
| Polarized | Yes |
| For Environment | Dry |
| Market | Industrial |
| Maximum Wire Size | 8 AWG |
| Contact Material | Brass |
| Minimum Wire Size | 14 AWG |
| Horsepower Rating | 0.5 HP |
| For Location | Indoor |
| Housing Material | Composite |
| Wire Size | #14 AWG to #8 AWG |
| Material - Mounting Hardware | Screw Mounting |
| Application | Extra Heavy Duty Industrial Specification Grade |
| Features | Reinforced thermoplastic construction; Single piece, all brass contacts; All terminals are back and side wired; Brass mounting strap with stainless steel grounding clip |
| Width | 1.41 in |
| Display Size | Standard Sized Product |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Length | 3.28 in |
| Amperage Rating | 15 A |
| Height | 1.01 in |
| Style | Single Receptacle |
| Amps | 15 |
| HP | 0.5 |
| Color | Black |
| Voltage | 125V AC |
| NEMA Configuration | L5-15 |
| Package Quantity | 1 |
