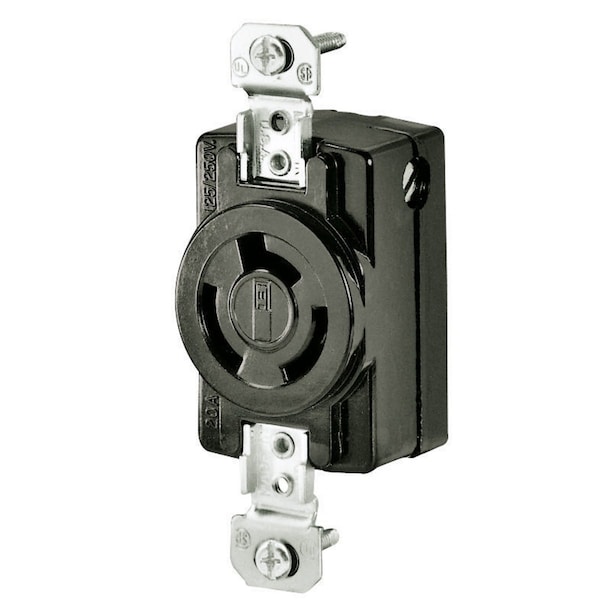

Locking Receptacle, Non-NEMA, 20 A, 125/250V AC, Three Phase, 3 Pole, Screw Terminals
| Item | Locking Receptacle |
|---|---|
| NEMA Receptacle Configuration | Non-NEMA |
| Current Rating | 20 A |
| Voltage Rating | 125/250V AC |
| Phase | Three |
| Number of Poles | 3 |
| Number of Wires | 3 |
| Wire Connection Type | Screw Terminals |
| Cover Type | No Cover |
| Standards | Certified for current interrupting at full rated current; FED SPEC UL/CSA |
| Material | Composite |
| Application | Extra Heavy Duty Industrial Specification Grade |
| Wire Size | #14 AWG to #8 AWG |
| Width | 1.71 in |
| Display Size | Standard Sized Product |
| Material - Mounting Hardware | Screw Mounting |
| Style | Single Receptacle |
| Length | 3.28 in |
| Height | 1.14 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Package Quantity | 1 |
