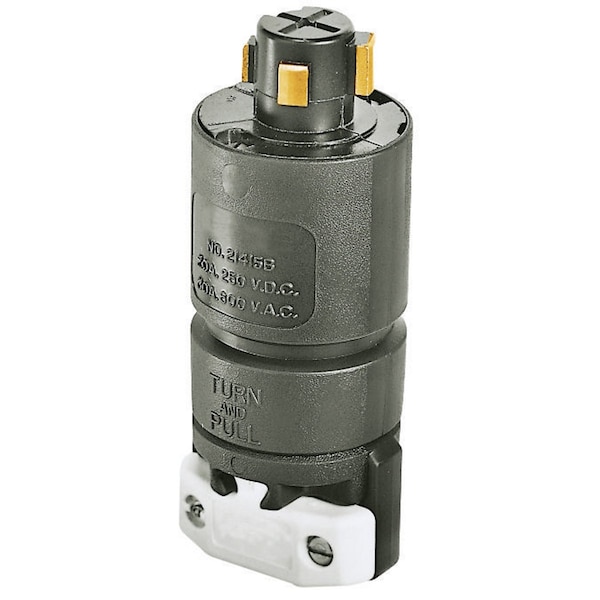

Lockng Device, Bryant Pwr Interrupting, Male Plg, 30A 250V DC/600V AC, 3-Pole 4-Wre Grndng, Non-NEMA
| Wiring Style | Grounding |
|---|---|
| Length | 2.33 in |
| Amps - Plugs and Receptacles | 30 A |
| Phase | Three Phase |
| Application | Extra Heavy Duty Industrial |
| Color | Black, White |
| Material | Composite |
| Wire Size | #10 AWG to #6 AWG |
| Number Of Poles | 3-Pole |
| Number Of Wires | 4-Wire |
| Connectivity | Screw Terminals |
| Cord Type | All Listed Portables |
| Voltage Rating Description | 250 VDC/600 VAC |
| Width | 2.33 in |
| Display Size | Standard Sized |
| Amperage Rating | 30 A |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Type | Plugs |
| Wattage | 18000 |
| Height | 5.62 in |
| Material - Mounting Hardware | Cord Mounted |
| Current Rating | 30 A |
| Style | Grounding |
| Voltage Rating | 250 VDC/600 VAC |
| Item Type | Male Plug |
| Features | Molded-in male contacts are resistant to damage and provide a consistently positive connection; Insulated non-metallic housing enhances safety and abuse resistance; Box terminals in conjunction with screws with pressure pads provide maximum termination strength and dependability; Three-piece clamp assembly provides maximum strain relief and protects against entry of moisture and dust |
| Package Quantity | 1 |
