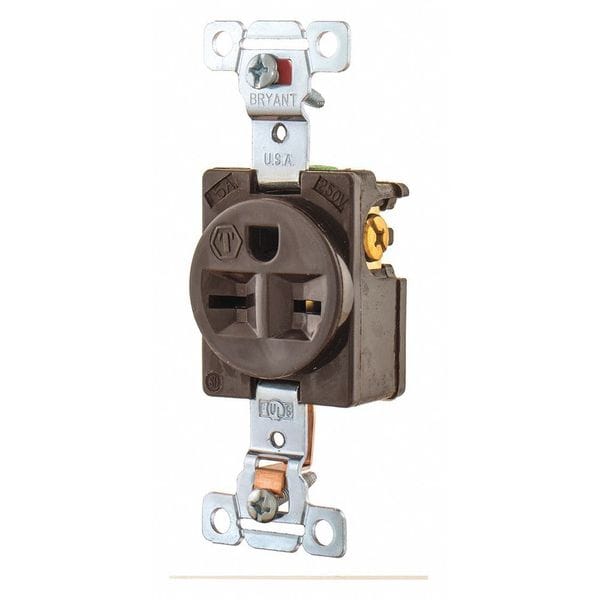

Receptacle, 15 A Amps, 250V AC, Flush Mount, Single Outlet, 6-15R, Brown
| Item | Receptacle |
|---|---|
| Outlet Type - Plugs and Receptacles | Single |
| Application Environment | Industrial |
| Mounting Type - Plugs and Receptacles | Flush |
| Amps - Plugs and Receptacles | 15 A |
| Voltage - Plugs and Receptacles | 250V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 6-15R |
| Surge Suppression | No |
| Tamper Resistant | No |
| Weather Resistant - Plugs and Receptacles | No |
| Color - Plugs and Receptacles | Brown |
| Wiring Method - Plugs and Receptacles | Side, Back |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Power Indicator | No |
| Amps | 15 |
| Phase | Single |
| Mounting Type | Flush |
| Wiring Method | Back, Side |
| Standards | CSA Certified, UL Listed |
| Sub-Category | Single Receptacles |
| Corrosion Resistant | No |
| Color | Brown |
| Number of Gangs | 1 |
| Amps - Plugs and Receptacles | 15 |
| Outlet Type | Single |
| Weather Resistant | No |
| Item - Plugs and Receptacles | Receptacle |
| HP | 1 1/2 hp |
| Material | Nylon |
| Voltage | 250VAC |
| Width | 1.38 in |
| Height | 0.91 in |
| Face Plate Height | 1.8 in |
| Flange Height | Not Applicable |
| Current Rating | 15 A |
| Cover Type | No Cover |
| Minimum Wire Size | 14 AWG |
| Includes | Mounting Hardware |
| For Location | Indoor |
| Polarized | Yes |
| Housing Color | Brown |
| Surge Protection | No |
| Flange Diameter | Not Applicable |
| Market | Industrial |
| Resistance Properties | Impact Resistant |
| Horsepower Rating | 1.5 HP |
| Grounding | Grounded |
| GFCI | No |
| Voltage Rating | 250V AC |
| AFCI | No |
| Flange Width | Not Applicable |
| Includes Mounting Hardware | Yes |
| Flange Type | Non-Flanged |
| Connection Orientation | Straight |
| Mount Hole Center-to-Center Height | 3.3 in |
| Receptacle Type | Single |
| Maximum Wire Size | 12 AWG |
| Mount Type | Flush |
| NEMA Receptacle Configuration | 6-15R |
| Overall Depth | 0.9 in |
| Housing Material | Nylon |
| Wire Connection Type | Screw Terminals |
| Face Plate Width | 0.9 in |
| Grade | General Use |
| Nema Rating | 6-15R |
| Display Size | Standard Sized Product |
| Wattage | 3750 |
| Style | Finder Groove Face |
| Current / Amperage Rating | 15 A |
| Series | Extra Heavy Duty |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Wire Size | #14 AWG to #12 AWG |
| Application | Extra Heavy Duty Industrial Specification Grade |
| Material - Mounting Hardware | Screw Mounting |
| Amperage Rating | 15 A |
| Connectivity | Back and Side Wired |
| Voltage Rating Description | 250 V |
| Item Type | Single |
| Type | Single Receptacle |
| Length | 3.28 in |
| Package Quantity | 1 |
