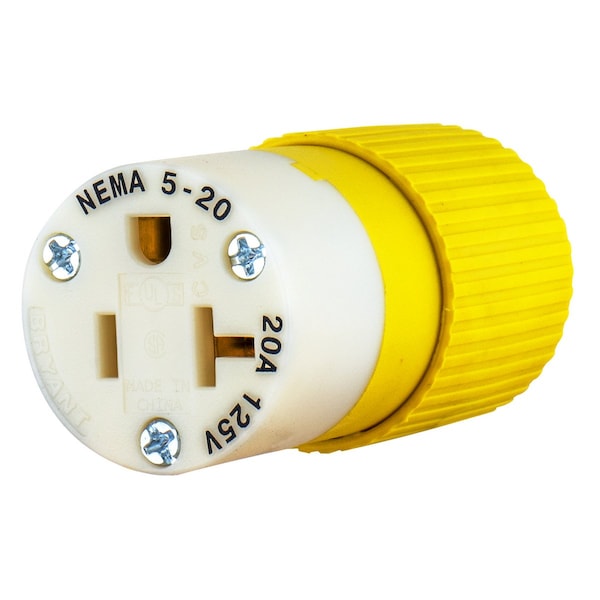

Straight Blade Device, Female Connector Body, Corrosion Resistant, Industrial/Commercial Grade
| Voltage | 125 V |
|---|---|
| Number of Poles | 2 |
| Number of Wires | 3 |
| Amps | 20 |
| Color | Yellow |
| Item | Tech-Spec Triple Gripper Straight Blade Connector |
| Special Features | Insulated Body |
| Material | Composite |
| Grade | Industrial; Extra Heavy Duty |
| Height | 1.38 in |
| Application | Extra Heavy Duty Industrial Grade |
| Width | 1.52 in |
| Length | 2.95 in |
| Maximum Wire Size | 10 AWG |
| For Environment | Indoor Dry Unless Protected By Additional Means |
| Grounding Style | Grounding |
| Minimum Wire Size | 14 AWG |
| Maximum Operating Temperature | 75 deg C |
| Minimum Operating Temperature | -40°C |
| Voltage Rating | 125 V |
| Number Of Conductors | 3-Wire Grounding |
| Cord Range | 0.245"-0.655" |
| Material - Mounting Hardware | Cord Mounted |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Series | Industrial |
| Connectivity | Screw Terminals |
| Insulation | Insulated Body |
| Type | Connector Body |
| Item Type | Tech-Spec Triple Gripper |
| Conductor Range | #14 AWG to #10 AWG |
| Display Size | Standard Sized Product |
| Amperage Rating | 20 A |
| Style | Extra Heavy Duty |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Nema Rating | 5 to 20 R |
| Package Quantity | 1 |
