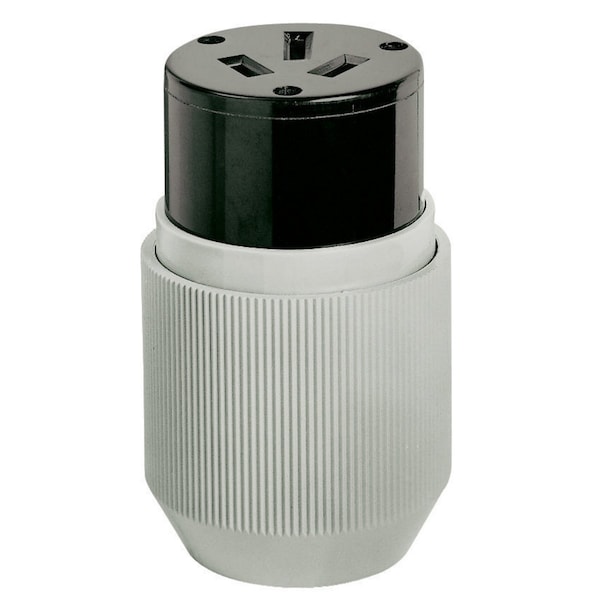

Straight Blade Device, Female Connector, HD, Straight, 50A 125/250V, 3-Pole 3-Wre Non Grndng, 10-50R
| Voltage | 125/250V |
|---|---|
| Number of Poles | 3 |
| Number of Wires | 3 |
| Height | 3.12 in |
| Width | 5.19 in |
| Length | 2.59 in |
| Color | Black |
| Grade | Heavy Duty; Industrial; Extra Heavy Duty |
| Amps | 50 |
| Special Features | Insulated Body |
| Item | Standard Connector |
| Material | Composite |
| Application | Heavy Duty |
| Minimum Operating Temperature | -40°C |
| Maximum Wire Size | 6 AWG |
| For Environment | Indoor Dry Unless Protected By Additional Means |
| Grounding Style | Non-Grounding |
| Maximum Operating Temperature | 75 deg C |
| Voltage Rating | 125/250 V |
| Display Size | Standard Sized Product |
| Material - Mounting Hardware | Cord Mounted |
| Type | Connector Body |
| Insulation | Insulated Body |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Style | Extra Heavy Duty |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Number Of Conductors | 3-Wire Non-Grounding |
| Nema Rating | 10 to 50 R |
| Series | Industrial |
| Amperage Rating | 50 A |
| Connectivity | Pressure Terminal Screws |
| Conductor Range | #6 AWG |
| Item Type | Standard |
| Package Quantity | 1 |
