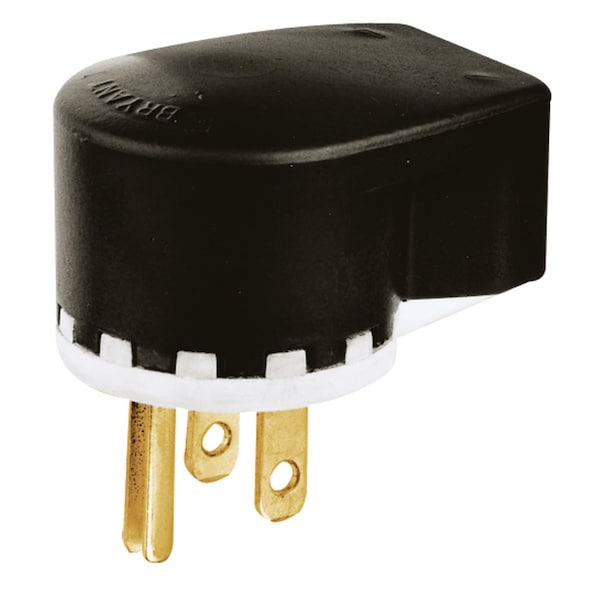

Straight Blade Device, Male Plug, HD, Angled 12 Position, 2-Pole 3-Wire Grounding, 15A 125V, 5-15P
| Wiring Style | Standard |
|---|---|
| Voltage - Plugs and Receptacles | 125 V |
| Color | Black |
| Type | Plug |
| Material | Composite |
| Phase | Single Phase |
| Length | 1-1/4 in |
| Application | Heavy Duty; Industrial |
| Width | 2.07 in |
| Cord Type | All Portable |
| Mounting Hardware | Cord Mounted |
| Wire Size | #14 AWG to #12 AWG |
| Wattage | 1875 |
| Style | Extra Heavy Duty |
| Amperage Rating | 15 A |
| Connectivity | Screw Terminals |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Housing Color | Black |
| Display Size | Standard Sized |
| Nema Rating | 5 to 15 P |
| Wire Gauge | #14 AWG to #12 AWG |
| Item Type | Standard |
| Series | Industrial |
| Wire Connection Type | Screw Terminals |
| Cord Range | 0.300"-0.655" |
| Voltage Rating | 125 V |
| Number Of Poles | 2-Pole |
| Material - Mounting Hardware | Cord Mounted |
| Current Rating | 15 A |
| Number Of Wires | 3-Wire |
| Package Quantity | 1 |
