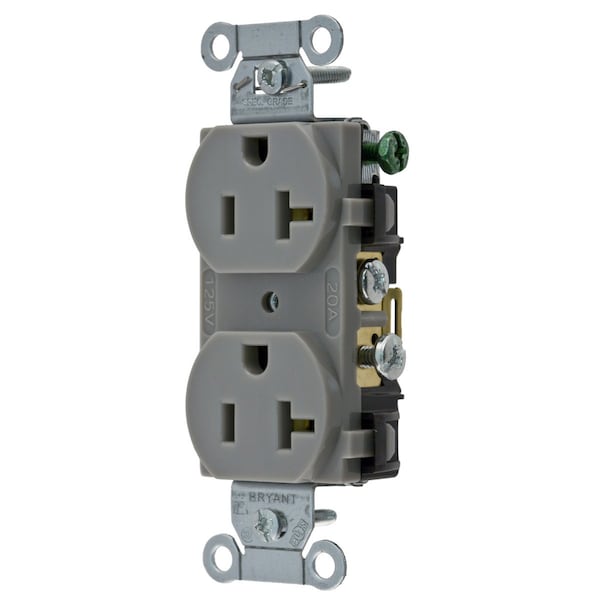

Straight Blade Devices, Receptacles, Duplex, 20A 125V, 2- Pole 3-Wire Grounding, 5-20R, Gray
| Phase | Single Phase |
|---|---|
| Height | 1.07 in |
| Type | Duplex Receptacle |
| Color | Gray |
| Material | Composite |
| Width | 1.38 in |
| Length | 3.28 in |
| Application | Commercial Specification Grade |
| Display Size | Standard Sized Product |
| Voltage Rating Description | 125 V |
| Current Rating | 20 A |
| Current / Amperage Rating | 20 A |
| Number Of Wires | 3-Wire |
| Material - Mounting Hardware | Screw Mounting |
| Series | Commercial |
| Nema Rating | 5-20R |
| Amperage Rating | 20 A |
| Style | Smooth Face |
| Item Type | Face |
| Number Of Poles | 2-Pole |
| Wire Size | #14 AWG to #12 AWG |
| Wattage | 2500 |
| Connectivity | Back and Side Wired |
| Voltage Rating | 125 V |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Package Quantity | 1 |
