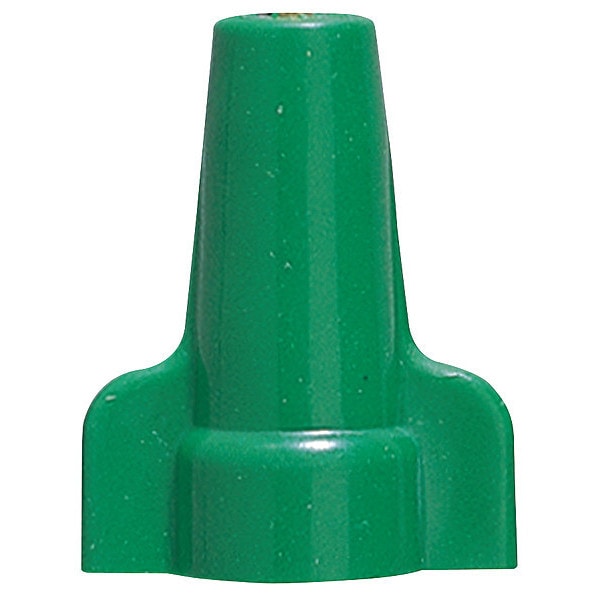

Conector de cable giratorio, calibre 14-10, paquete de 50
| Color | Green |
|---|---|
| Min. Single Wire Size | 14 AWG |
| Max. Single Wire Size | 10 AWG |
| Series | WGR |
| Max. Voltage | 600 V AC |
| Wire Connector Style | Wing |
| Min. Wire Combination | (2) 14 AWG |
| Max. Wire Combination | (5) 12 AWG |
| Height | 1.15 in |
| Width | 0.57 in |
| Application | General Purpose |
| Item | Twist On Wire Connector |
| Standards | CSA Certified, UL Listed |
| Connector Type | WGR |
| Overall Height | 1.15 in |
| Maximum Operating Temperature | 221 deg F |
| Maximum Single Wire Size | 10 AWG |
| UL 94 Flammability Rating | V-2 |
| Minimum Wire Combination | (2) 14 AWG |
| Maximum Conductors | 5 |
| Overall Width | 0.57 in |
| Insulation Material | Polypropylene |
| Special Features | Contoured Wing Design Provides Enhanced Torque, Expanding, Square-Wire Spring Creates Secure Connections, Wide, Deep Skirt Opening Accommodates a Variety of Wire Combinations |
| Maximum Wire Combination | (5) 12 AWG |
| For Conductor Material | Copper |
| Minimum Single Wire Size | 14 AWG |
| Maximum Voltage | 600 V |
| Contact Material | Steel |
| Package Quantity | 50 |
